Key Features

• Dust collector featuring energy-saving air-filtration system captures 99.9% of all particles (1) micron or larger
• Cartridge type dust collectors standard for improved efficiency and durability
• High performance motor head exhaust system
• Automatic pulse-shake system controlled by timer
• Easy access to filter cartridges
• Replacement cartridges readily available anywhere on the market
• Can be operated with either pressure or suction sandblasting cabinets
• Available in 208-230/460V/575V / 3Ph / 60Hz and 380V / 3Ph / 50Hz
• Certified by QPS for Canada, United States, and European Union

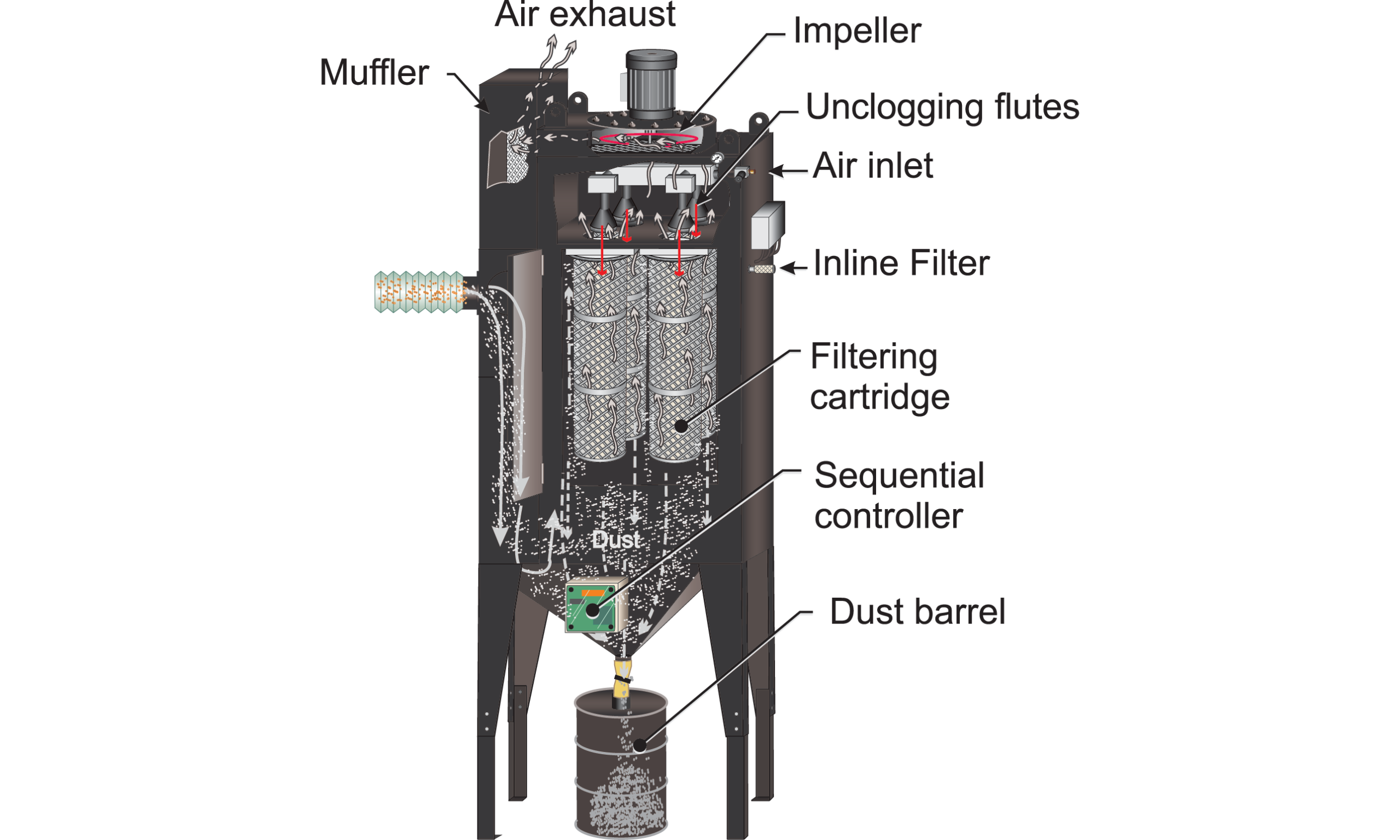

How It Works

Fine particles and dust pass through recycler and are retained by dust collector; only clean air is ejected. Cartridges automatically cleaned by pulses of compressed air blowing inside. Pulse momentarily reverses flow of air passing through cartridges, clearing outer surface dust which then falls to bottom of barrel. Interval and duration of each pulse controlled by timer inside control box.

Certification Marks

• CAN/CSA C22.2 No. 61010-1-12 (Canada and USA)
• CAN/CSA C22.2 No. 61010-2-201 (Canada and USA)
• UL 61010-1 (Canada and USA)
• UL 61010-2-201 (Canada and USA)
• CE 2006/42 (European Union)
• CE 2017/35 (European Union)
