The Air Wash Separator is specifically designed for mechanical abrasive recovery systems used in sandblast booths. It is typically installed at the discharge of the bucket elevator, where it separates reusable abrasive media from dust, fines, and contaminants before the media is returned to the blasting process.

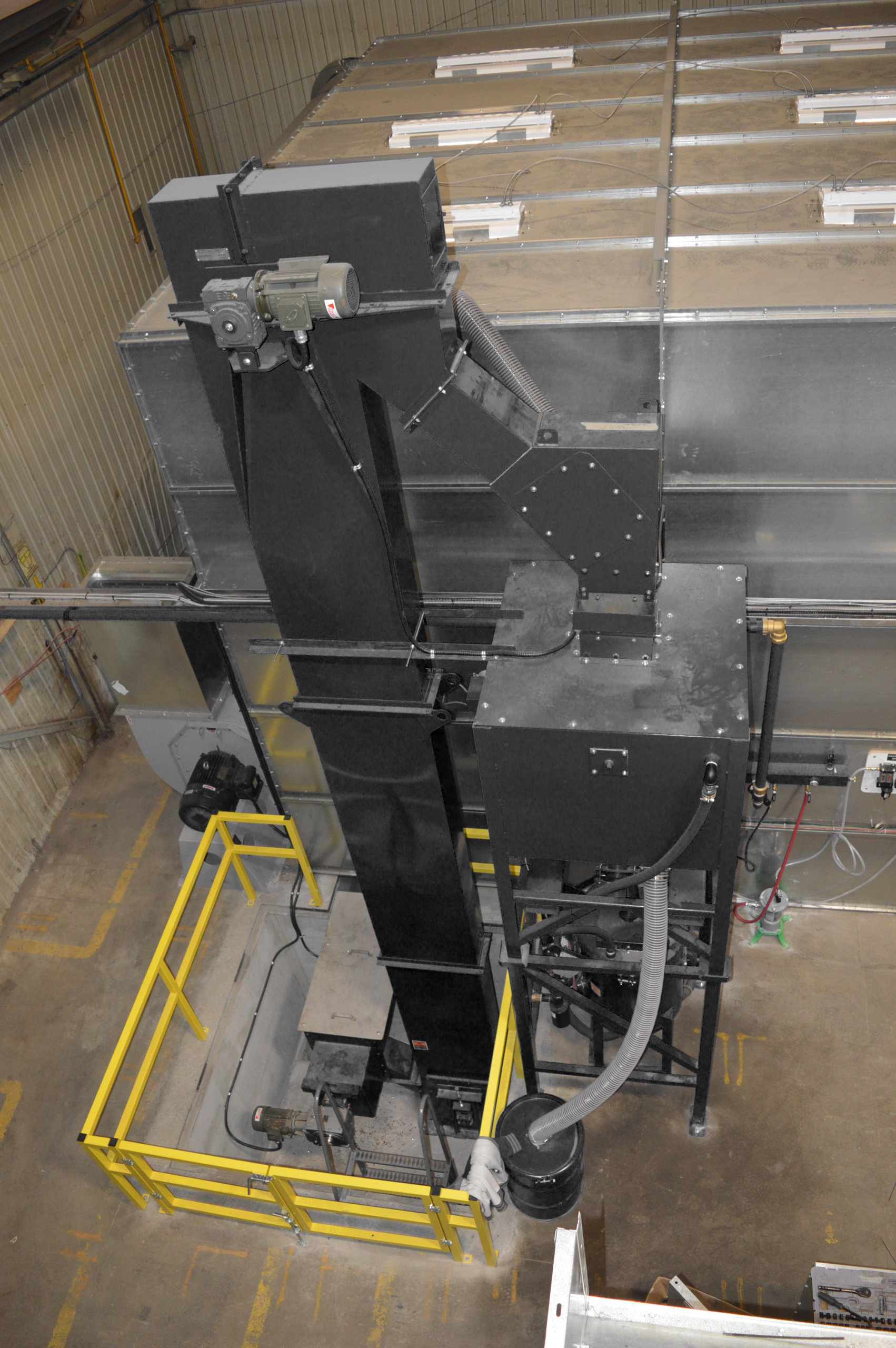

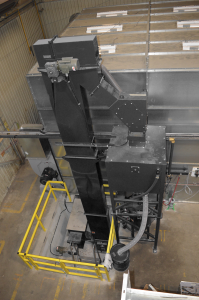

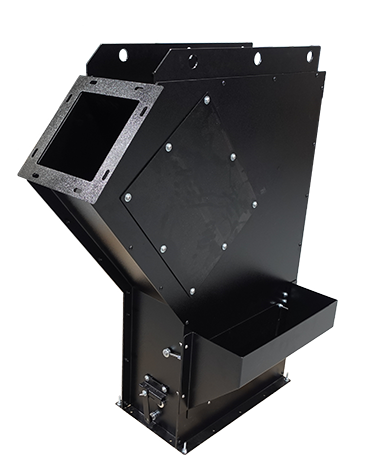

An industrial bucket elevator system with a black vertical conveyor and enclosed machinery, featuring HARS2000 Hybrid Recovery System technology, surrounded by yellow safety railings inside a large factory or warehouse setting.Black metal industrial chute with a slanted, rectangular opening, bolted panels, and a side compartment—designed for directing materials or components and integrating seamlessly with an Air Wash Separator—against a plain white background.

Originally developed by IST decades ago, Air Wash Separators continue to operate reliably in blast booth installations around the world, demonstrating their proven performance and durability.

Until 2026, the Air Wash Separator was considered the industry standard for high-throughput blast booth applications. In 2026, a new generation of media separation technology was introduced: the Rotary Sieve Separator. This advanced system is now the preferred solution for both pneumatic and mechanical media recovery systems and, in many cases, can be retrofitted to existing installations equipped with an Air Wash Separator.

Key Features

  • High Throughput Capacity – Capable of processing up to 10,000 lbs of abrasive media per hour, making it ideal for demanding production environments.
  • Adjustable Performance – Airflow and separator settings can be fine-tuned to accommodate a wide range of abrasive media types and particle sizes.
  • Robust Construction – The separation process relies primarily on gravity, minimizing wear caused by high-velocity abrasive particle flow and ensuring long service life.

How The Air Wash Separator Works?

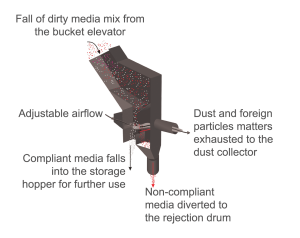

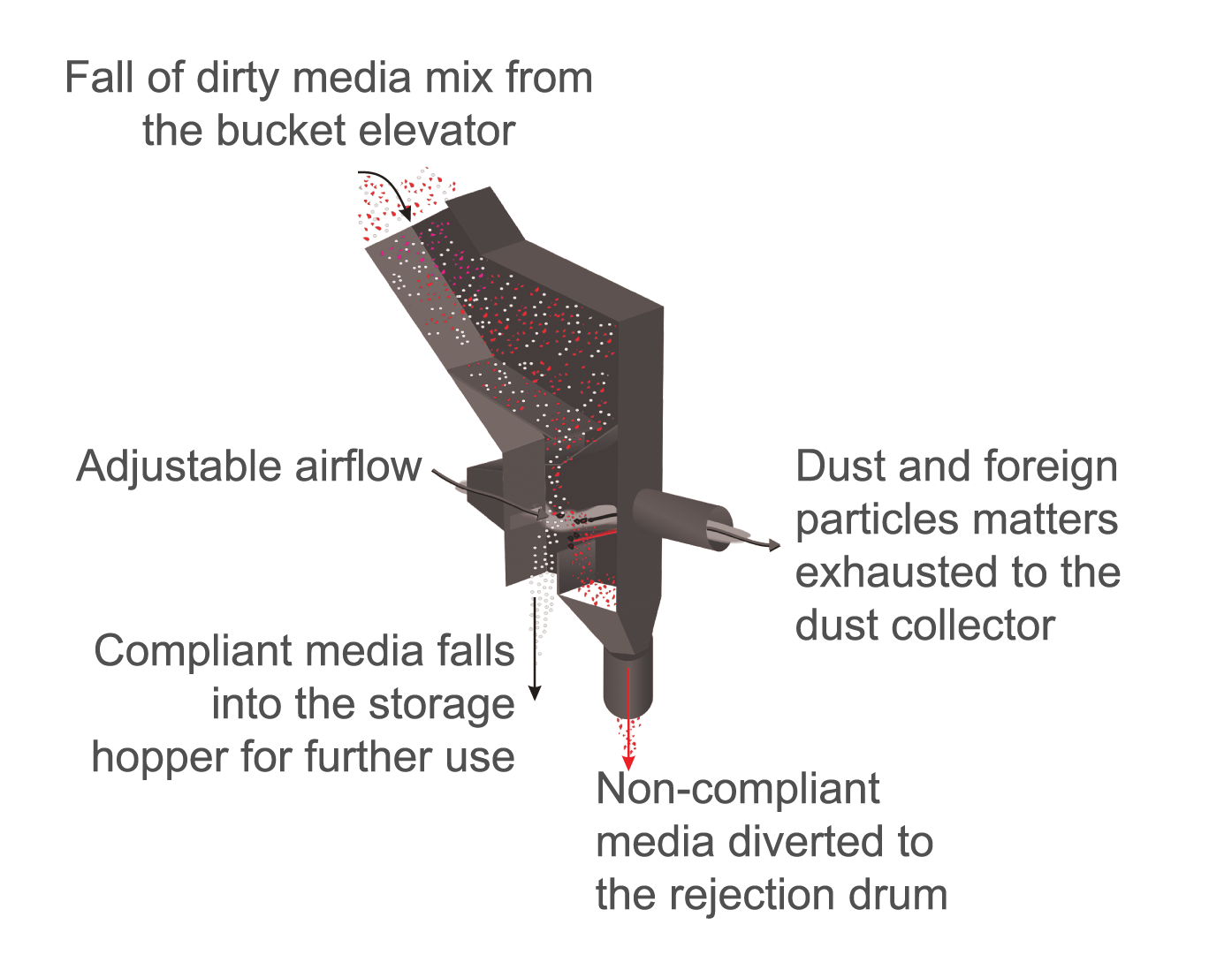

As recovered abrasive media exits the bucket elevator, it enters the Air Wash Separator and falls through a controlled airflow stream. During this process, lighter particles such as dust, fines, and debris are carried away by the air stream and directed to the dust collection system. Heavier, reusable abrasive media continues downward by gravity and is returned to the media storage hopper for reuse.

This simple yet effective separation method helps maintain abrasive quality, improves blasting consistency, and reduces media consumption and operating costs.
