Among the various abrasive media separation technologies available today, the cyclonic separator remains one of the simplest, most reliable, and cost-effective solutions for abrasive media recovery and recycling.
Cyclonic separators can be integrated into most sandblasting systems, including sandblast cabinets, automated surface finishing equipment, and pneumatic blast rooms. After impacting the workpiece, the abrasive media and contaminants are conveyed to the cyclonic separator, where reusable media is separated from dust, fines, and process debris generated during blasting.
The cleaned abrasive media is then returned to the blasting system for reuse, while dust and foreign particles are directed to the dust collector for disposal. This continuous recovery process helps maintain blasting efficiency, reduce media consumption, and ensure consistent finishing results.
A cyclonic separator uses centrifugal force and controlled airflow to efficiently separate reusable abrasive media from dust, fines, and other contaminants generated during the blasting process.
After blasting, the dirty media mixture is collected from the floor and conveyed into the cyclonic separator. As the mixture enters the cylindrical chamber, it creates a high-speed vortex. Centrifugal force pushes the heavier, reusable abrasive particles toward the outer wall, causing them to spiral downward into the recovery hopper. Meanwhile, lighter contaminants—including dust, paint chips, rust, scale, and broken abrasive particles—remain suspended in the airflow and are carried to the dust collector for removal.
This efficient separation process ensures that only clean, reusable abrasive media is returned to the blast pot, reducing abrasive consumption, maintaining consistent blasting performance, and minimizing waste.
As the heart of a pneumatic abrasive media recovery system, the cyclonic separator plays a critical role in maintaining media quality and system efficiency. Because abrasive particles continuously impact the separator’s interior walls, an optional rubber lining is available to protect against premature wear and extend equipment life.
After passing through the cyclonic separator, the material follows two separate paths:

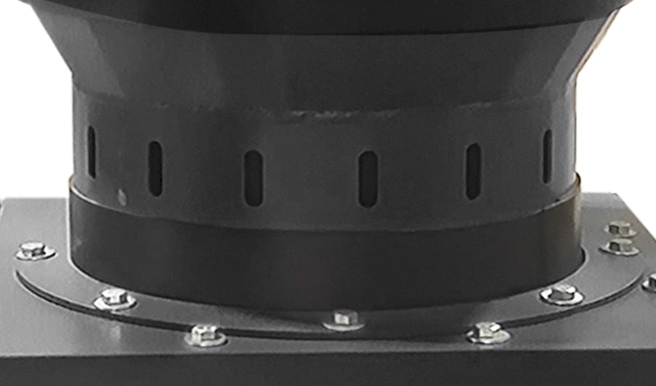

The airflow inside the cyclonic separator can be adjusted to accommodate a wide range of abrasive media types and blasting applications. Airflow is regulated by a rubber adjustment band installed around the separator body. This band partially covers a series of air inlet ports, allowing the operator to control the amount of air entering the cyclone.
As air enters through these ports, it accelerates the vortex inside the separator using the Venturi principle. Increasing the airflow creates a stronger vortex, allowing the system to remove heavier contaminants. Conversely, reducing the airflow produces a less aggressive vortex, making it better suited for lighter abrasive media.
Proper airflow adjustment is essential for efficient media separation. If too much air is introduced, the vortex may become overly aggressive and carry reusable abrasive media into the dust collector, resulting in unnecessary media loss. On the other hand, insufficient airflow creates a weaker vortex that may allow dust, broken abrasive particles, and other fine contaminants to fall back into the blast pot. This can reduce blasting efficiency, contaminate the abrasive media, and generate excessive dust during operation.
Fortunately, this adjustment only needs to be performed during the initial commissioning of the system. Once the optimum airflow has been established for the selected abrasive media, no further adjustments are typically required. During startup, our qualified technicians will calibrate the cyclonic separator to ensure maximum recovery efficiency and consistent blasting performance.

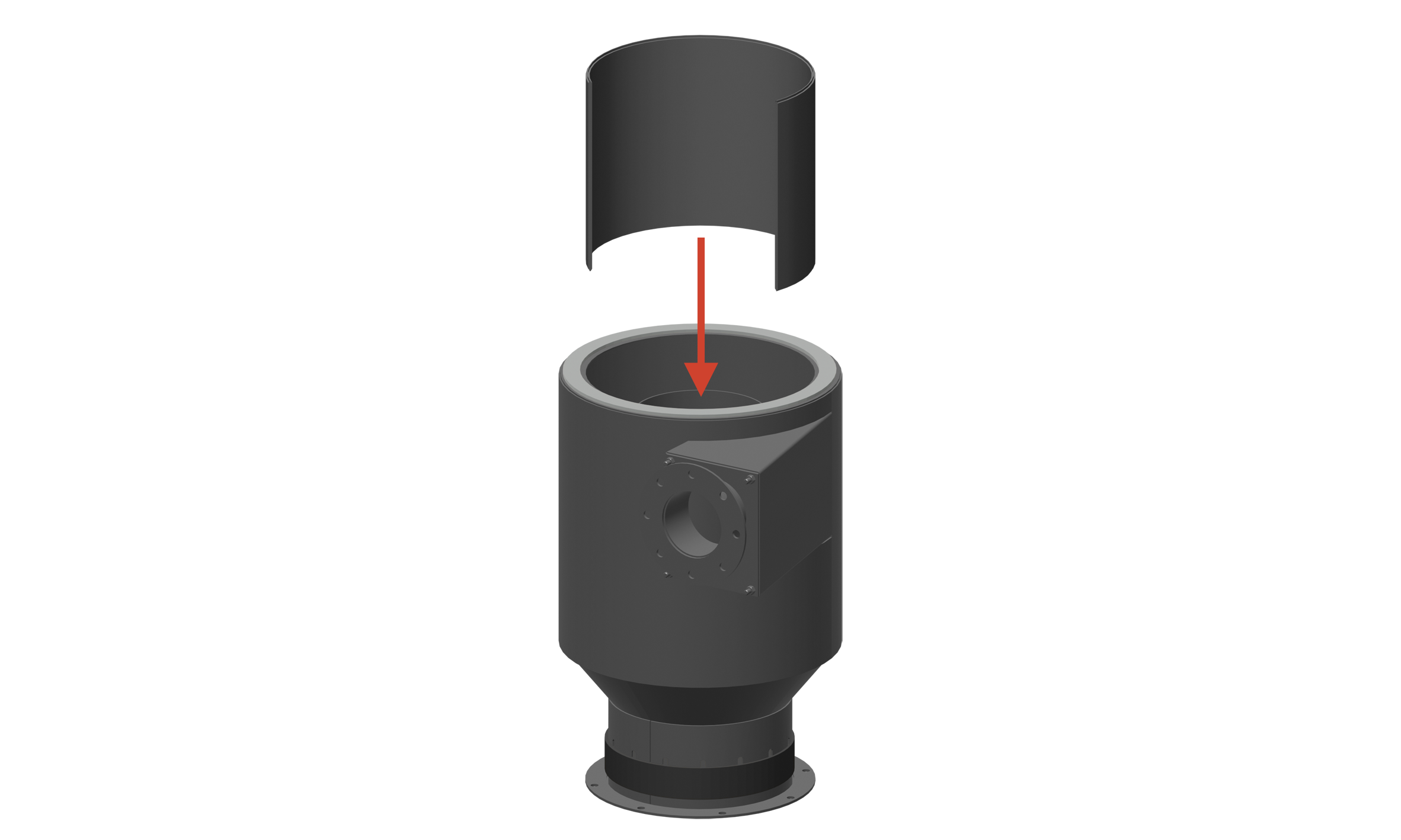

For highly abrasive applications, cyclonic separators can be equipped with an optional rubber lining to maximize service life.
The rubber lining protects the cyclone body from premature wear caused by the continuous flow of abrasive media, reducing maintenance requirements and extending equipment lifespan in demanding industrial environments.
Kresco cyclonic separators are available as standalone recovery units or can be supplied as complete assemblies with a motorized media reclaimer and/or pressurized blast vessel.

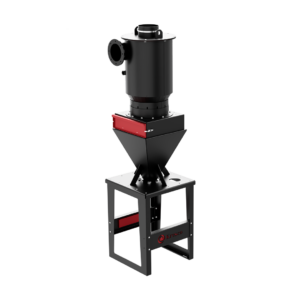

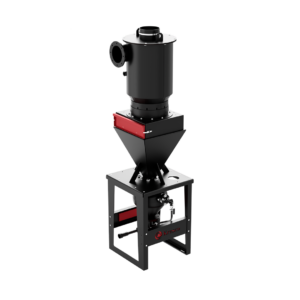

RSB: Cyclonic separator for suction cabinets RPB: Cyclonic separator for pressure cabinets
Our specialists can help you choose the optimal model based on your blasting equipment, abrasive media type, airflow requirements, and production volume.
Contact us for expert recommendations and application support.
