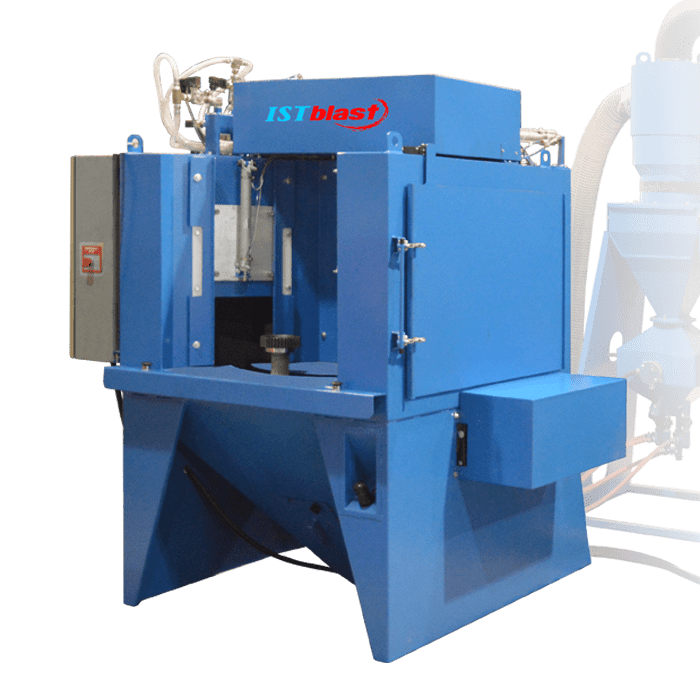

Indexing Turntable

Indexing Turntables are the ideal sandblasting system for the continuous production flow of identical small- and medium-sized parts. This system significantly increases the throughput of repetitive blast patterns, and also integrates perfectly with automated fabrication facilities utilizing robotic arms to move parts along the production line.

Download Brochure Request A Quote
Advantages of our Indexing Turntable Sandblast Cabinets
  • Efficiency – All-in-one process that blasts and cleans parts within one complete circumference.
  • Reproductivity – Precise positioning of parts on a rotating satellite support ensures predictive and repetitive process quality.
  • Productivity – The operator stands on a single point of the loading and unloading station, which reduces time wasted moving around the shop.
  • Flexibility – Loading/unloading procedures can be automated with robotic arms for an operator-free process.
  • Convenient – Equipment is low-maintenance and has a small footprint.
  • Limitless – Available with either suction or pressure system.

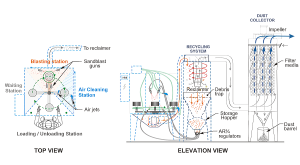

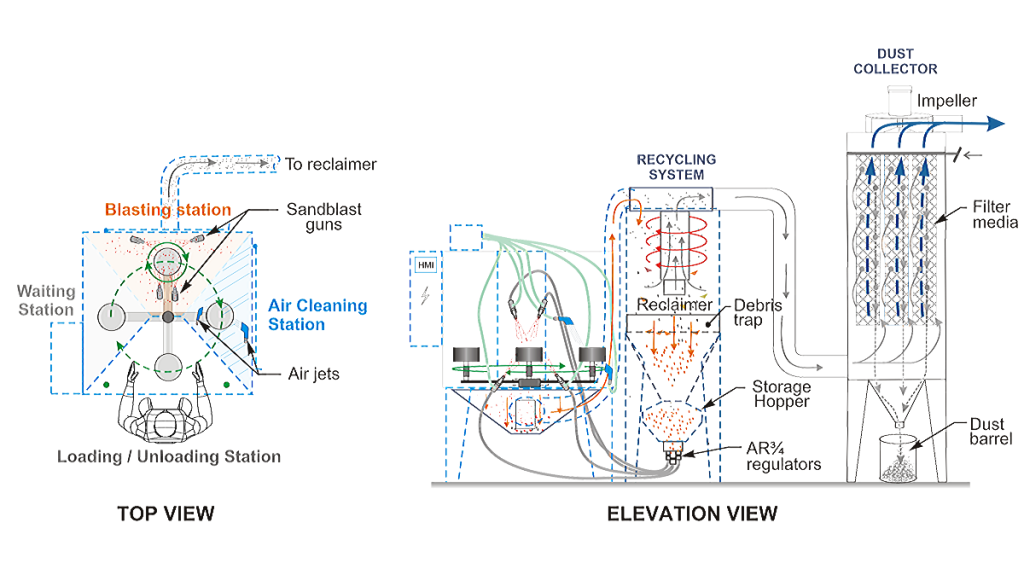

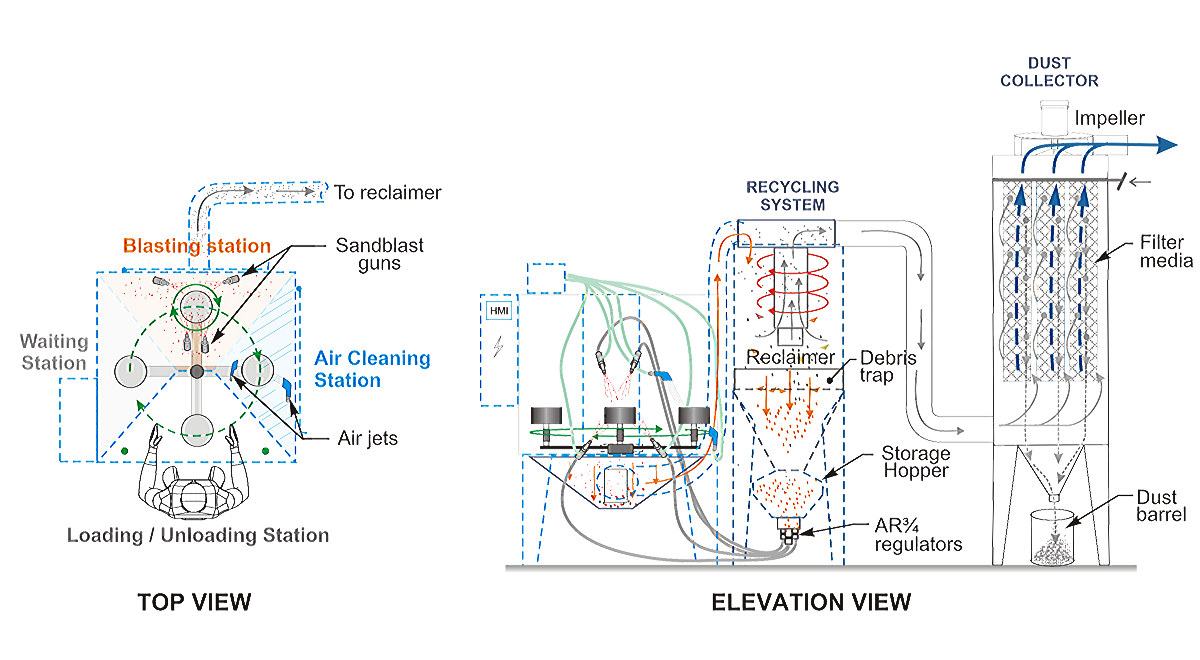

How It Works

The system consists of four stations:

  • The loading/unloading station allows the operator or robotic arm to remove treated parts and install untreated parts on a satellite support.
  • The waiting station acts as a dust barrier between the operator and the sandblasting station.
  • The sandblasting station is where the parts are exposed to an abrasive blast stream.
  • The air cleaning station is equipped with dust-off nozzles which remove any remaining dust from parts before unloading.

Parts can be loaded/unloaded manually by the operator, or automated with the addition of a material handling robot.

Nozzle Arrangements

The size and complexity of the parts usually define which nozzle arrangement is ideal for the application:

  1. Fixed nozzles.
  2. Oscillating nozzles on a vertical or horizontal axis.
  3. Rotary head nozzles.
  4. Nozzle mounted on a robotic arm.

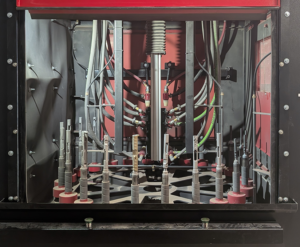

A close-up of industrial electrical or mechanical equipment with multiple wires, metal rods, and cylindrical components inside a metal enclosure. The setup appears complex, with red, black, and gray elements.

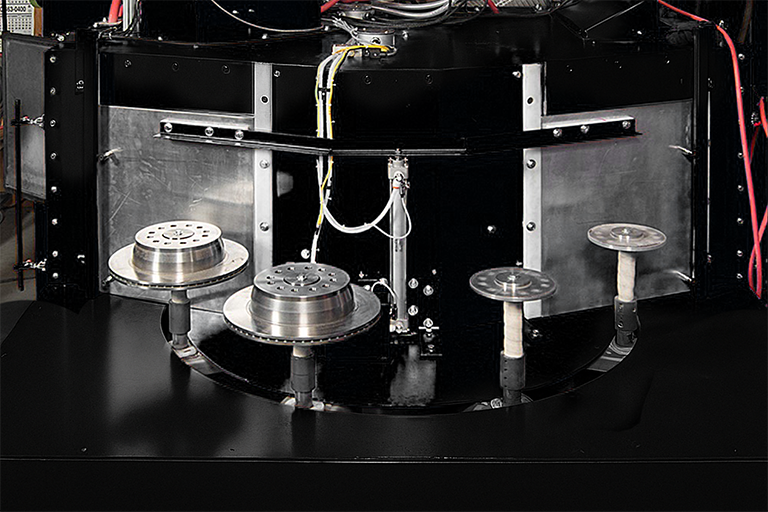

A close-up view of a machine with three metallic rotating platforms, each holding a circular metal object, possibly brake discs; wires and mechanical parts are visible above and around the platforms.

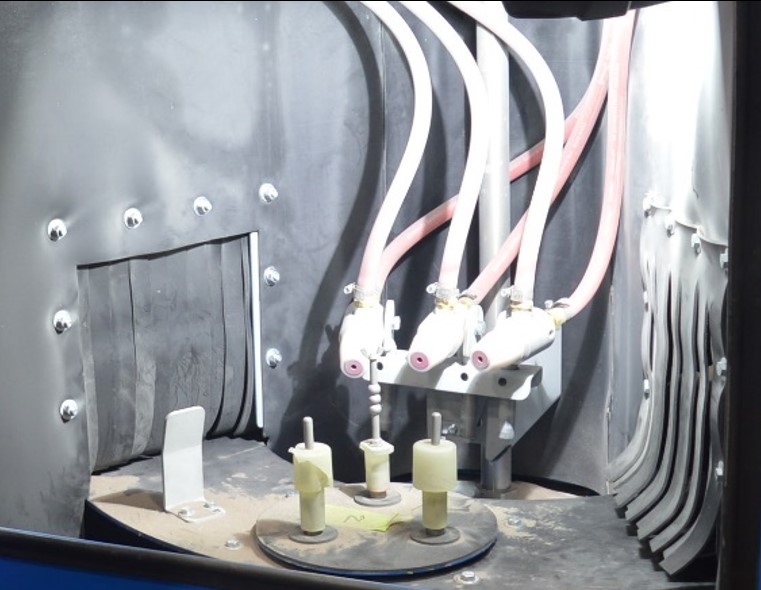

Three nozzles with pink tips and connected tubes are mounted inside a metal machine, aimed at two cylindrical objects on an indexing turntable; the setup appears industrial and automated.

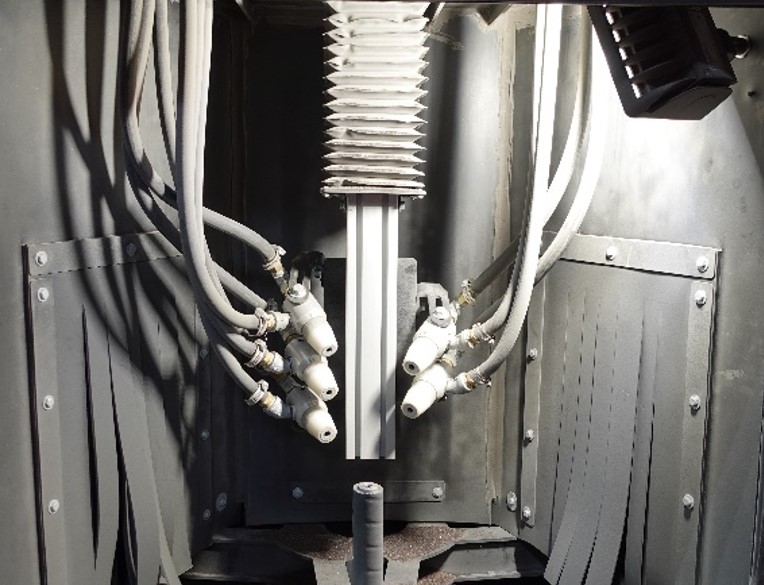

Inside view of an industrial machine featuring several white hoses connected to a central vertical cylinder with metal fittings, all housed within a robust metal enclosure—an arrangement often integrated with a Rotary Indexing Table for precise, automated part positioning.

Cyclonic Separator

This sandblast cabinet is equipped with a tunable Cyclonic Abrasive Media Separator that continuously cleans and recycles the abrasive media during blasting operations. The separator removes dust, fines, and other contaminants by directing them to the Dust Collector, allowing only clean, reusable abrasive media in good working condition to return to the cabinet. This helps maintain consistent blasting performance, reduce media consumption, and improve overall process efficiency.

A cutaway diagram of an industrial cyclone dust collector shows airflow and particle paths; dust enters, spirals inside, larger particles fall to the bottom, while cleaner air exits through the top.

Learn More About The Cyclonic Separator

Dust Collection & Filtration System

All Automated Finishing Systems are delivered with a Self-Cleaning Cartridge Dust Collectors.

Two CDC Series industrial dust collectors with red and black metal bodies, control panels on the side, and a black cylindrical collection bin at the bottom, shown from a front and side view—ideal companions for sandblast cabinets.

Shop Cartridge Dust Collectors for Sandblast Cabinets

Key Features
  • Production Yield: The system can be designed with 4 or 8 satellites, each of which can move from one to a few parts at a time (usually up to 3), depending on the size and complexity of the parts as well as the constraints and requirements of the process.
  • Heavy-Duty Rotating Table: The rotating table is mounted on heavy-duty shafts which can handle a significant load.
  • Custom Design and Fabrication: Each system is tailored to the customer’s specifications to address all process constraints and for optimal results and productivity.
  • Personalized Process: Personalize your process by varying abrasive media, blast nozzle size, blasting pressure, table rotation speed, and blasting cycle time.
  • Fully Automated Cycle: Process sequences are controlled by PLC and interfaced with an intuitive HMI touch panel.
  • Cartridge-Type Dust Collector: Delivered with a powerfull, self-cleaning cartridge dust collector able to capture up to 99.9% of particles down to 5 µm.
  • Media Reclaiming System: Cyclonic separation of contaminated abrasive media for optimal performance – dust and by-products are diverted to the dust collector.
  • Electricity: Available in all voltages and frequencies.
  • Compliance: Design and door switches comply with OSHA requirements and most local safety jurisdictions.
  • Parts Cleaning: Automatic blow-off cycle to remove all dust and contaminants from the freshly-blasted parts.
  • Liner Protection: Rubber lining protection on the inner wall, rotating table, and media reclaimer for extended service life (Linatech).
Optional Features
  • Tower Status Indicator Lights: Stack lights offer modular stackable components that provide illuminated and audible status indication for machines, systems and process.
  • HEPA Filters: Our dust collectors are designed to fit a HEPA filter when the process requires it, which can capture 99.98% of particles down to 0.3 µm.
  • Parts Handling Robots: Automate tedious and unsafe parts handling tasks with a dedicated robotic arm.
  • Loading/Unloading System: Facilitate the loading/unloading procedure for heavy parts while preventing injuries in the workspace.
  • Remote PLC I/O: Benefit from remote access assistance on the PLC, allowing for instant troubleshooting and easy software updates.
  • MagnaValve Abrasive Regulator: The MagnaValve and controller provide an accurate regulation of ferrous and non-ferrous media in shot peening and blast cleaning applications where accurate and repeatable flow rates are desired.
  • SWECO Vibratory Media Classification System: The SWECO particle separation and sifting system provides an accurate media classification and sizing for precise peening or blast cleaning applications.
