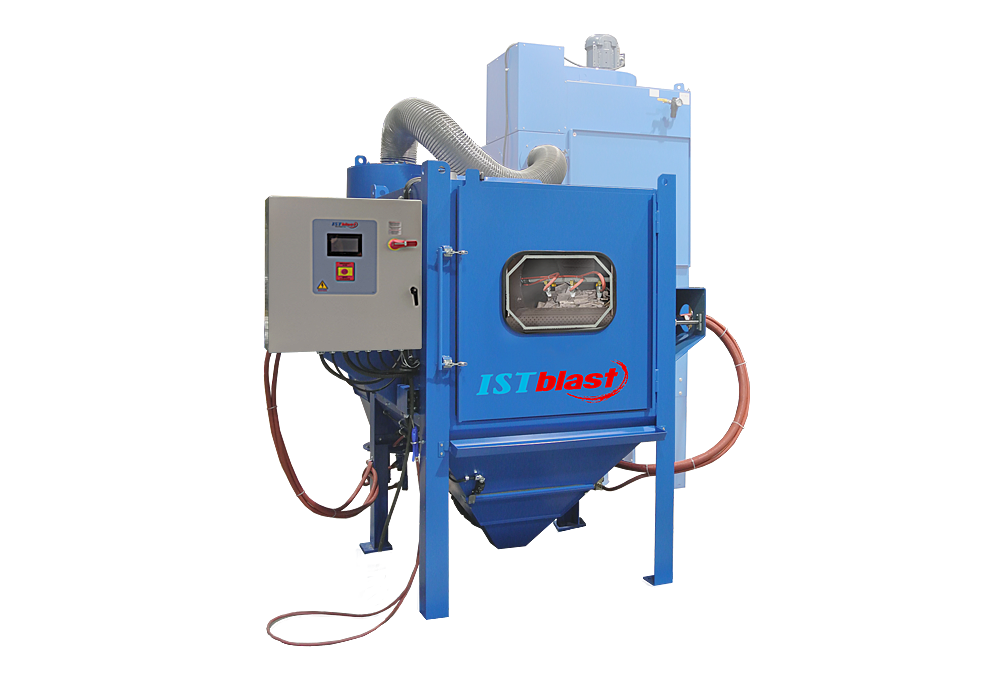

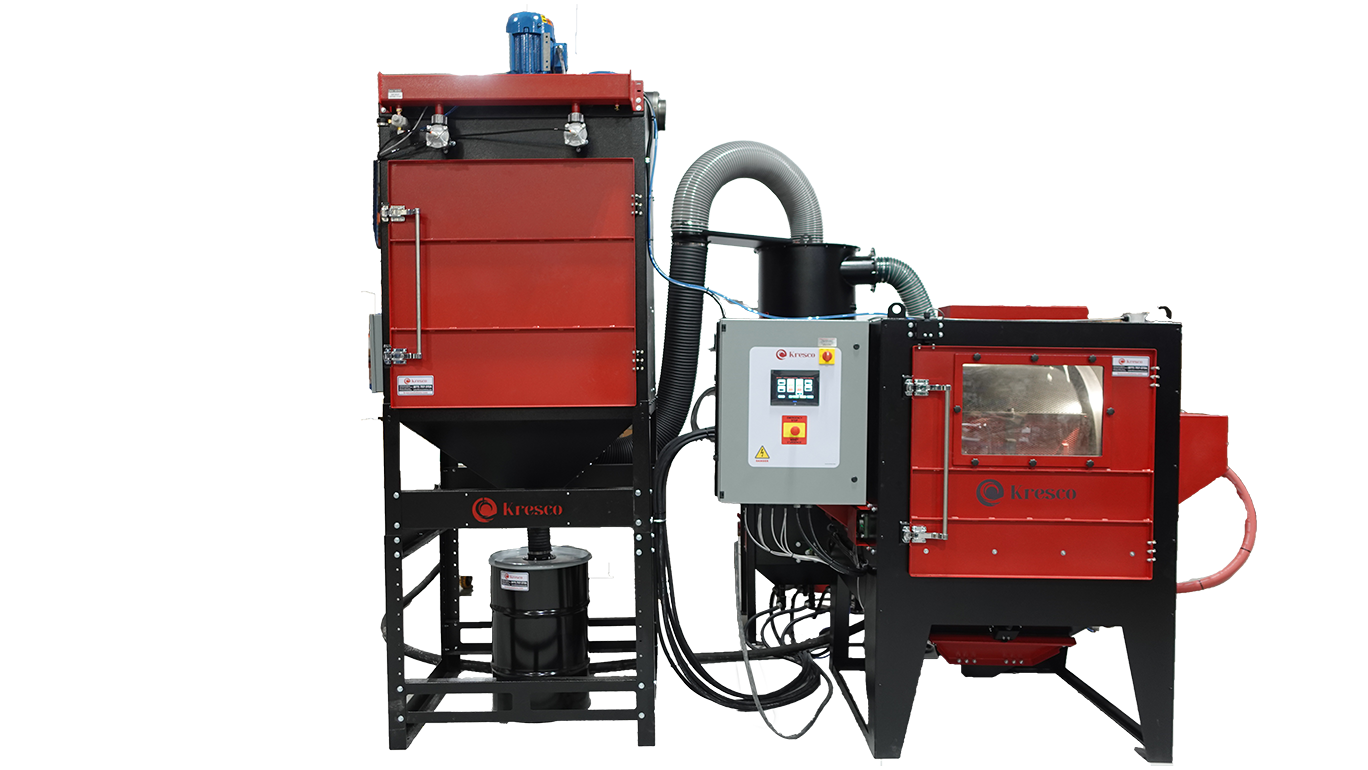

Inline Basket Blaster

Advantages

• Equipment has a small footprint.
• Continuous feed system.
• Simplifies the surface treatment of small, hard-to-hold pieces.
• Reduces abrasive media consumption – all media pieces hit a target.
• Fully automated process controlled by PLC and interfaced with an intuitive HMI touch screen.
• Low-maintenance.

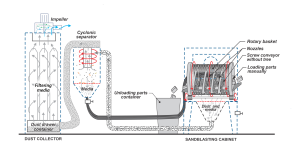

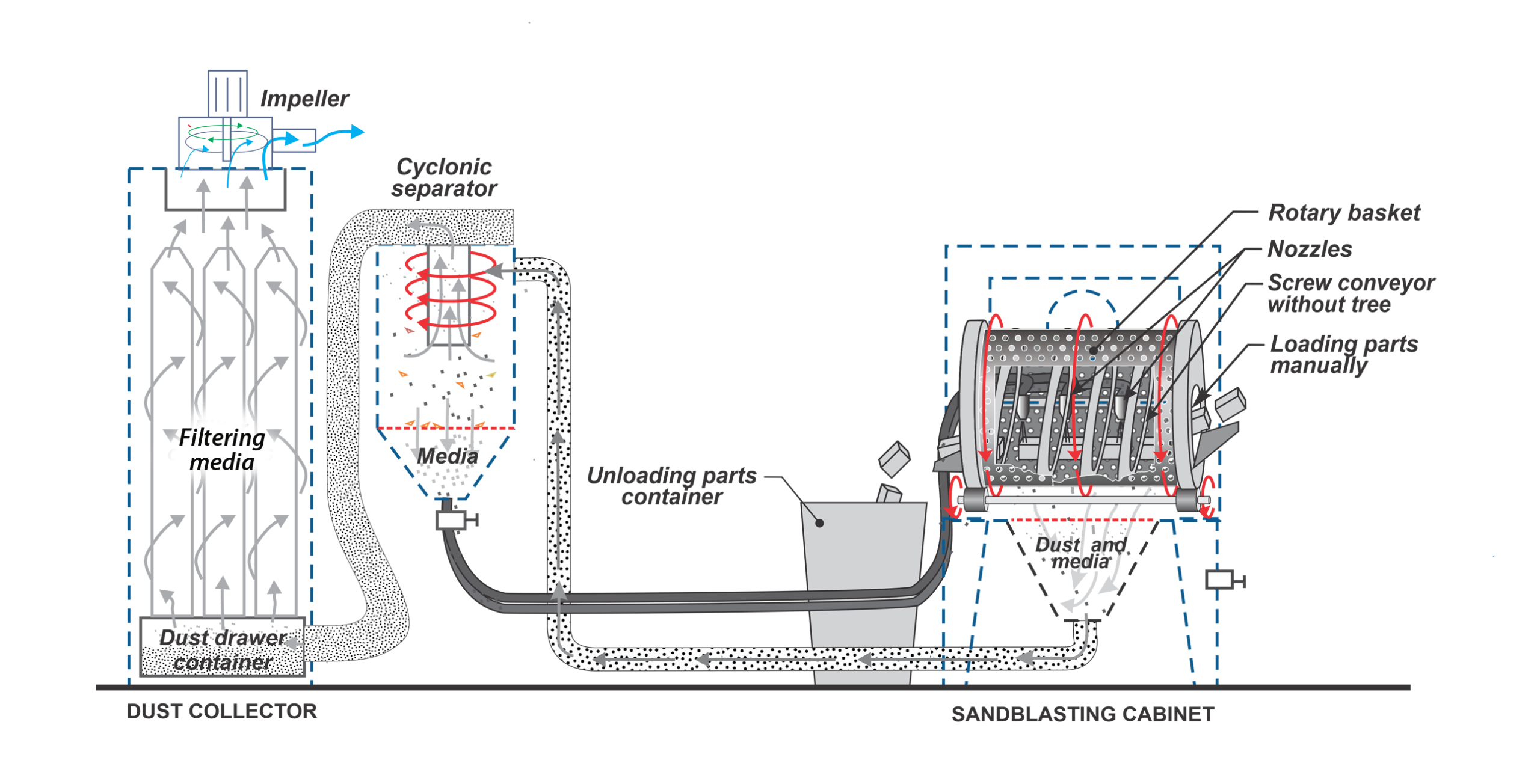

How It Works

Simply load the parts into the feeder and collect perfectly clean parts as they exit the perforated tumbling basket on the opposite side. The basket is shaped with a shaftless screw conveyor flight all around to keep parts separated from one another and to move them towards the exit chute.

As parts travel through the rotating basket, they tumble to ensure all surfaces are being exposed to the blast stream.

The speed of traveling and exposure to the blast stream can be controlled by varying the basket’s rotation speed. The stand-off distance from the workpiece and the blasting pressure can also be adjusted to obtain the desired finish.

Parts can be loaded manually or automatically with the addition of a conveyor and/or a robotic arm.

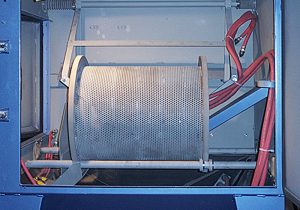

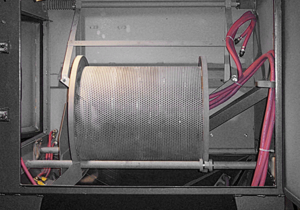

Interior View

Cyclonic Separator

This sandblast cabinet is equipped with a tunable Cyclonic Abrasive Media Separator that continuously cleans and recycles the abrasive media during blasting operations. The separator removes dust, fines, and other contaminants by directing them to the Dust Collector, allowing only clean, reusable abrasive media in good working condition to return to the cabinet. This helps maintain consistent blasting performance, reduce media consumption, and improve overall process efficiency.

Learn More About The Cyclonic Separator

Dust Collection & Filtration System

All Automated Finishing Systems are delivered with a Self-Cleaning Cartridge Dust Collectors.

Shop Cartridge Dust Collectors for Sandblast Cabinets

Key Features

• Heavy-Duty Tumbling Basket: Designed with a coated 30” X 30” tumbling basket which has a loading capacity of 3½ cu. ft. (350 lb), and is available in different mesh sizes.
• Ergonomic: Unloading chute located at the end of the tumbling basket.
• Custom Design and Fabrication: Each system is tailored to the customer’s specifications to address all process constraints and for optimal results and productivity.
• Personalized Process: Personalize your process by varying abrasive media, blast nozzle size, blasting pressure, table rotation speed, and blasting cycle time.
• Fully Automated Cycle: Process sequences are controlled by PLC and interfaced with an intuitive HMI touch panel.
• Cartridge-Type Dust Collector: Delivered with a powerfull, self-cleaning cartridge dust collector able to capture up to 99.9% of particles down to 5 µm.
• Media Reclaiming System: Cyclonic separation of contaminated abrasive media for optimal performance – dust and by-products are diverted to the dust collector.
• Electricity: Available in all voltages and frequencies.
• Compliance: Design and door switches comply with OSHA requirements and most local safety jurisdictions.
• Parts Cleaning: Automatic blow-off cycle to remove all dust and contaminants from the freshly-blasted parts.
• Liner Protection: Rubber lining protection on the inner wall, rotating table, and media reclaimer for extended service life (Linatech).

Optional Features

• Tower Status Indicator Lights: Stack lights offer modular stackable components that provide illuminated and audible status indication for machines, systems and process.
• HEPA Filters: Our dust collectors are designed to fit a HEPA filter when the process requires it, which can capture 99.98% of particles down to 0.3 µm.
• Parts Handling Robots: Automate tedious and unsafe parts handling tasks with a dedicated robotic arm.
• Loading/Unloading System: Facilitate the loading/unloading procedure for heavy parts while preventing injuries in the workspace.
• Remote PLC I/O: Benefit from remote access assistance on the PLC, allowing for instant troubleshooting and easy software updates.
• MagnaValve Abrasive Regulator: The MagnaValve and controller provide an accurate regulation of ferrous and non-ferrous media in shot peening and blast cleaning applications where accurate and repeatable flow rates are desired.
• SWECO Vibratory Media Classification System: The SWECO particle separation and sifting system provides an accurate media classification and sizing for precise peening or blast cleaning applications.
