Industrial sandblasting cabinet available with suction or pressure system.
Looking for even more power and performance?

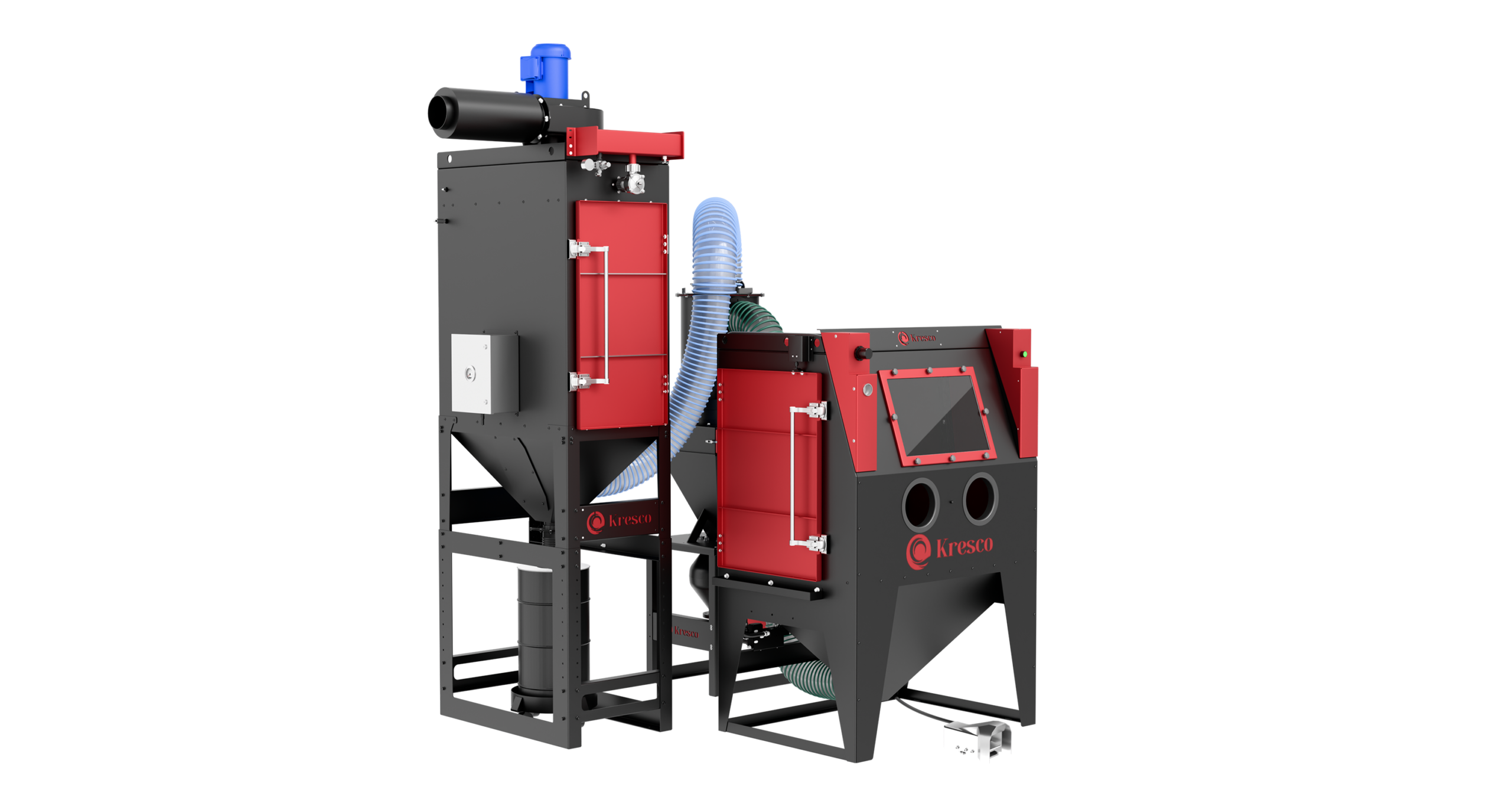

Industrial PowerBlast Series Sandblasting Cabinets are the most powerful and sophisticated cabinets available on the market today. Built with strong 12-gauge steel and equipped with cutting-edge technologies, the PowerBlast Series can accomplish any heavy-duty tasks you can imagine.
Fully customizable in sizes and configurations, PowerBlast Series cabinets are delivered with powerful CDC Series high-efficiency impeller cartridge dust collector and tunable media reclaimer. For better ergonomics and performance, various optional features can be added.
Depending on your application, you can choose between two systems to reach the best output and lower your operation costs.
An economical suction-type cabinet is ideal for everyday maintenance and light-duty jobs. Compressed air (released by operator pedal or trigger gun) enters gun and creates a vacuum that draws and expels abrasive onto the workpiece.
Blasting uses the Venturi principle of sucking media from a hopper. Air jet diameter is half the interior diameter of the nozzle and, as the air stream passes through both, it creates suction which pull the media from the hopper into the air stream. Media acceleration distance from nozzle to workpiece is short (approximately 4 to 14 inches). The suction system works fine and can continuously blast as long as there is blasting media in the hopper.
However, suction systems have limits on suction capacity and propelling heavier media. Very heavy blasting media (larger steel media) cannot be conveyed into air stream with suction blasting. Nonetheless, most industrial blast cabinets use suction systems due to their lower cost and because they work well for most applications.
Learn More About Sandblast Cabinet Delivery Systems
For rapid results in hard-to-reach areas, high performance pressure-type cabinets have 1.3 cubic foot pressure vessel that forces media through blasting hose and nozzle.
The pressure pot contains media that pressurizes the pot as it is energized with compressed air. When air/media mix is released from the pot, it accelerates through at least 5-10 feet of hose and then picks up even more speed as it travels through the Venturi of the nozzle. The acceleration rates of air/media mix are much higher in pressure blasting than suction blasting.
When pressure pot empties of media, it must be depressurized to be refilled with media. Pressure blasting systems are much more productive than suction systems. Additionally, pressure systems can blast all types of media regardless of weight or size, but require a minimum of 25 psi to operate.

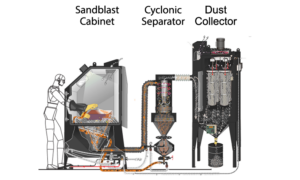

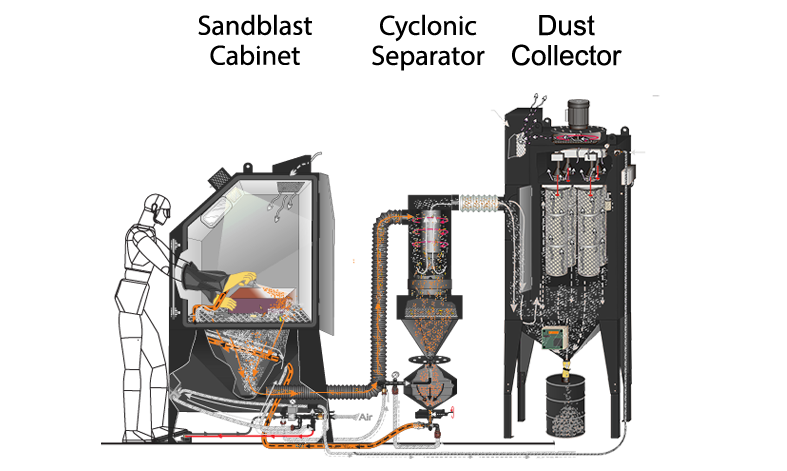

This sandblast cabinet is equipped with a tunable Cyclonic Abrasive Media Separator that continuously cleans and recycles the abrasive media during blasting operations. The separator removes dust, fines, and other contaminants by directing them to the Dust Collector, allowing only clean, reusable abrasive media in good working condition to return to the cabinet. This helps maintain consistent blasting performance, reduce media consumption, and improve overall process efficiency.
Learn More About The Cyclonic Separator
All PowerBlast Series Sandblast Cabinets are delivered with a Self-Cleaning Cartridge Dust Collectors.
Shop Cartridge Dust Collectors for Sandblast Cabinets
Kresco’s PowerBlast Series Sandblast Cabinets can be customized with a wide range of optional features designed to improve ergonomics, productivity, operator comfort, and blasting quality.

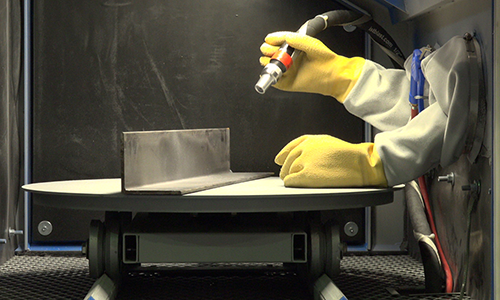

Improve material handling and reduce operator effort with a variety of manual and motorized worktables. Options include fixed worktables, roller racks, and wheel carts on rails for easier loading and unloading of heavy or oversized parts.
Learn More About Parts Handling Solutions for Sandblast Cabinets
Enhance operator safety and workplace protection with a selection of door options and integrated safety devices. These features help prevent accidental operation, improve containment, and support compliance with OSHA and other applicable safety standards.
Learn More About Door Options and Safety Devices
Increase productivity, process consistency, and repeatability with automation options tailored to your application. Available solutions include fixed or oscillating nozzle supports, rotary baskets, programmable part handling systems, and other automated blasting accessories.
Learn More About Automation Solutions for Sandblast Cabinets
Improve operator comfort and reduce fatigue during extended blasting operations with ergonomic features designed to minimize physical strain. These options promote a safer, more comfortable working environment while helping operators maintain consistent productivity throughout the workday.
Learn More About Ergonomic Features

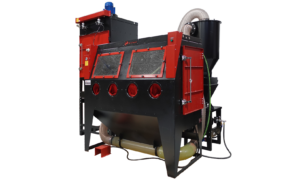

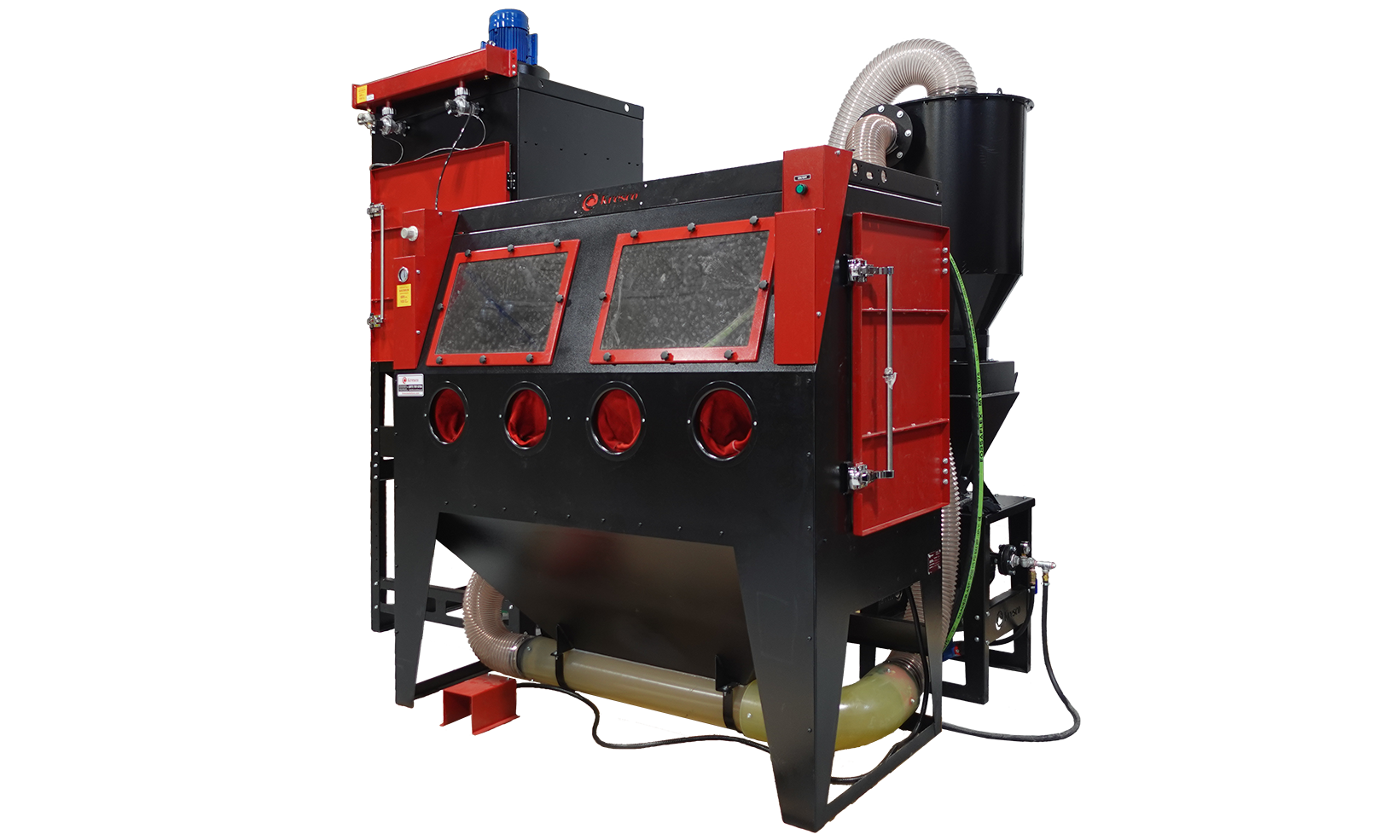

PowerBlast Series Sandblasting Cabinets can be designed to accommodate large workpieces or more than one user operating simultaneously. Depending on the size of the multi-operator cabinet, it is possible to integrate a pneumatic media reclaiming system underneath the cabinet hopper in order to recover and recycle media residues just like standard size, single-operator blast cabinet.
