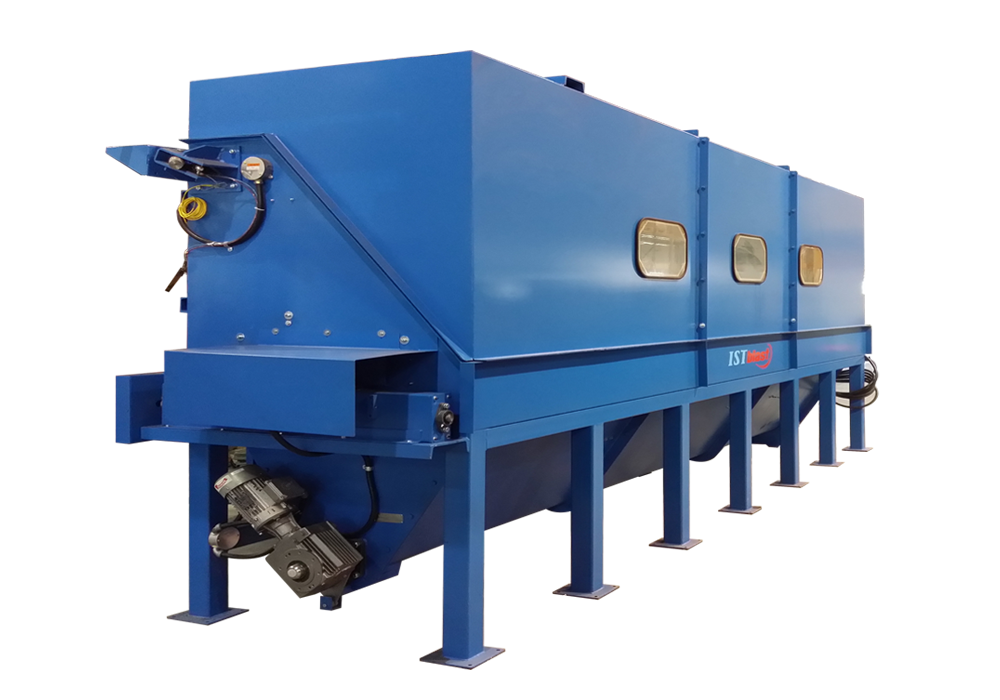

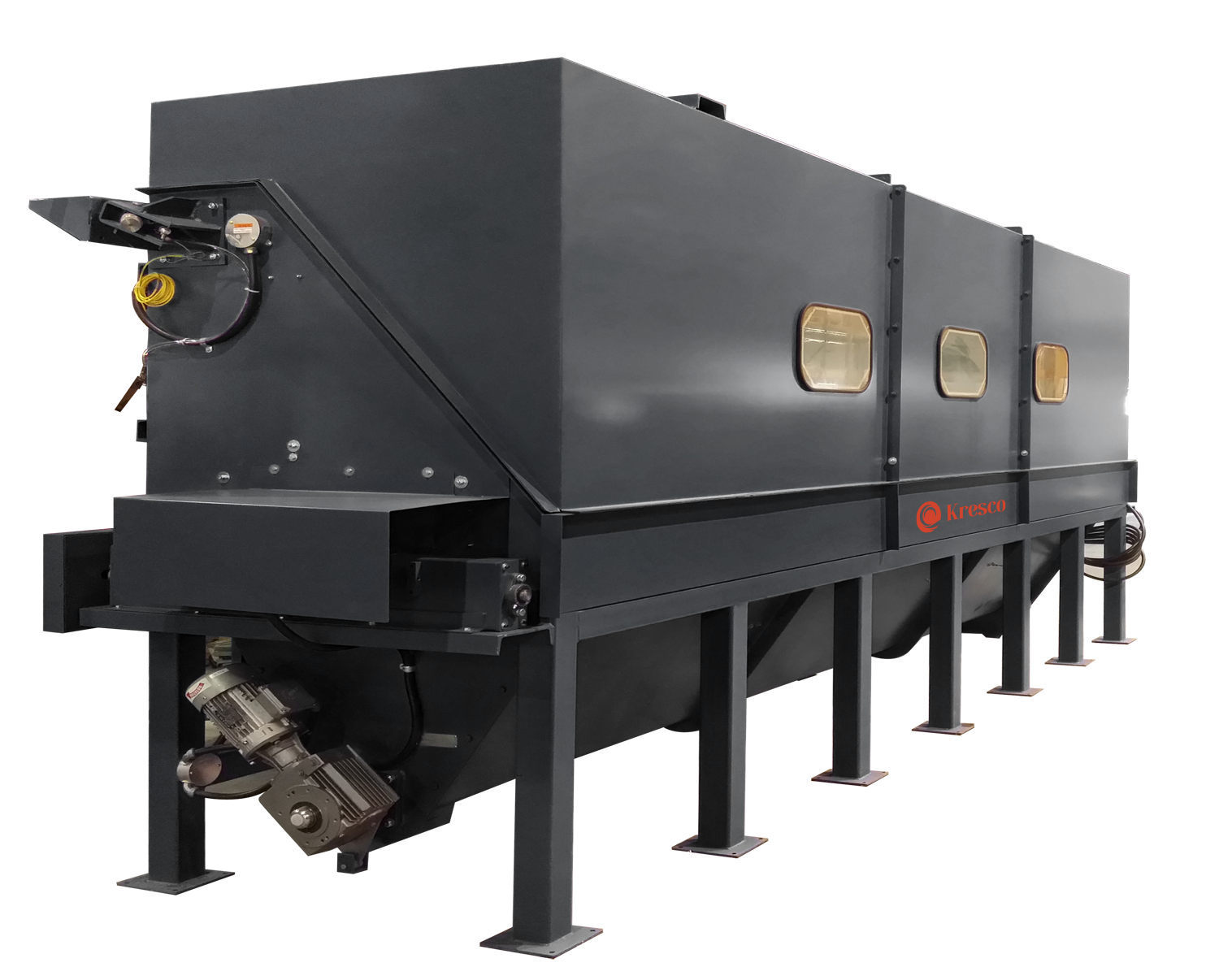

Cylinder and Pipe Blaster

How It Works

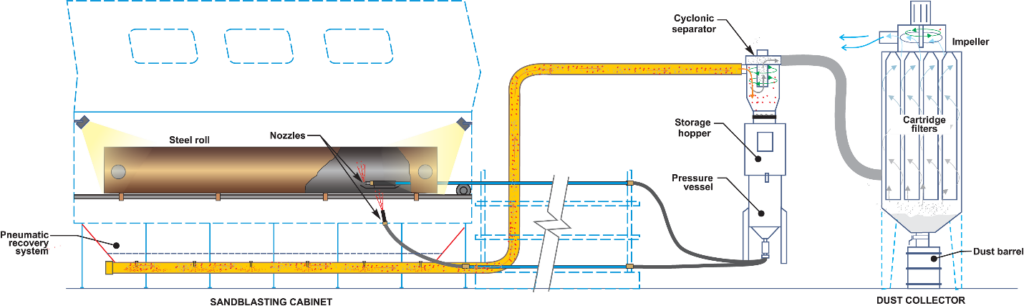

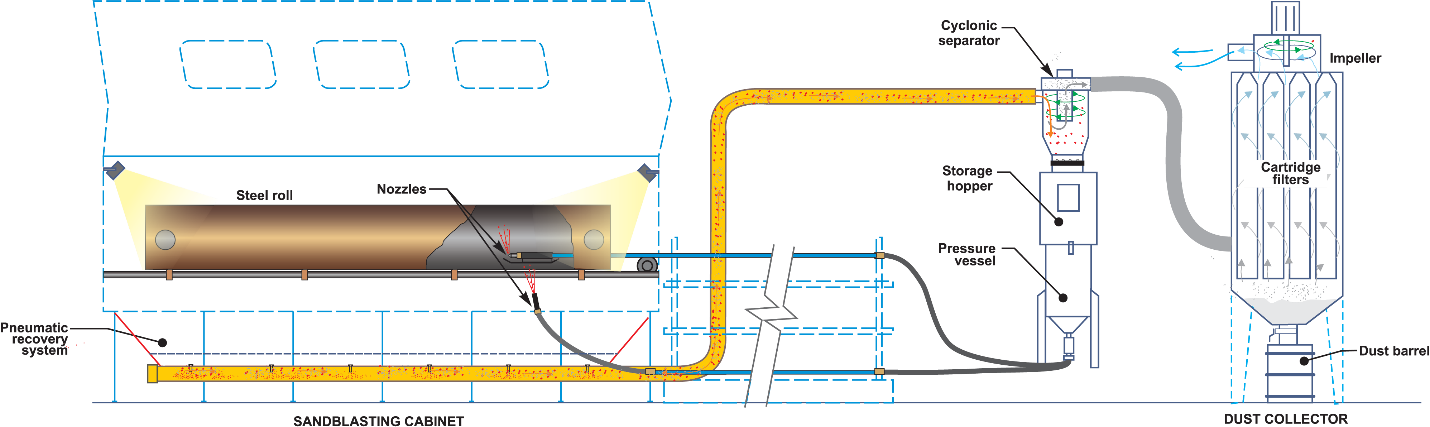

Simply put the cylinder piece on the rubberized drive rollers, shut the door, and start the blasting process.

As the cylinder rotates on the drive rollers, it gets exposed to oscillating blast nozzles mounted on a shaft to cover the whole exterior surface.

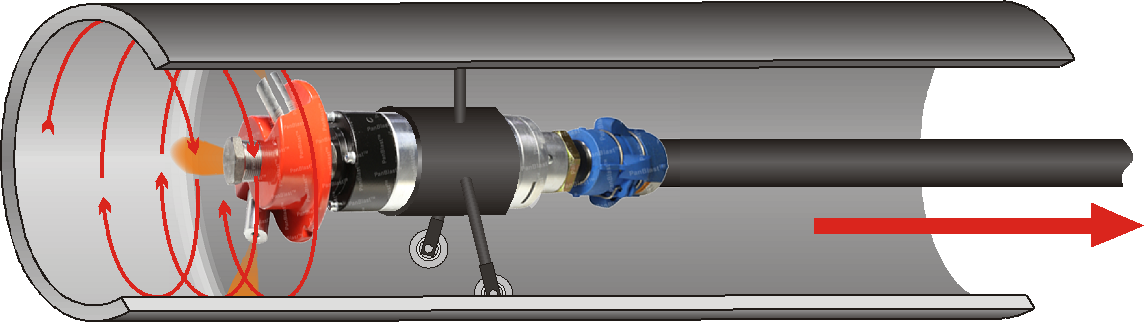

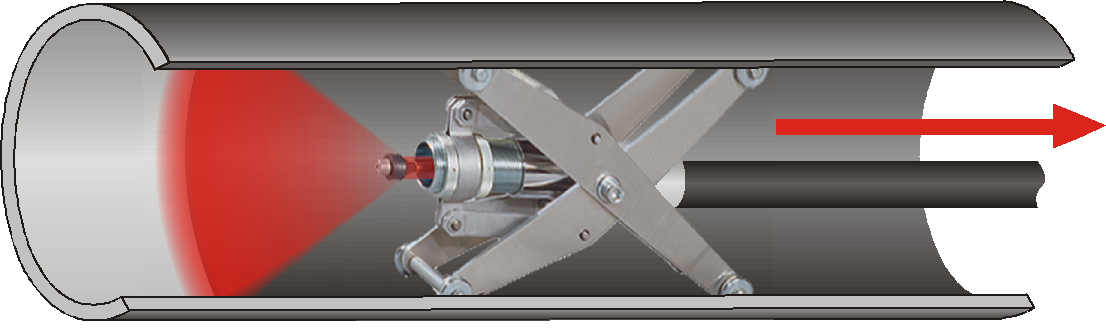

If needed, a pipe blaster nozzle can also enter the cylinder to clean the internal surface. We have pipe blasting solution that can process pipes ranging from 3/4″ up to 60″.

Key Features

• 360 Degrees Coverage: Able to blast inner and outer surfaces of pipes and cylinder-shape parts ranging from 3/4″ to up to 60″ diameter.
• Custom Design and Fabrication: Each system is tailored to the customer’s specifications to address all process constraints and for optimal results and productivity.
• Personalized Process: Personalize your process by varying abrasive media, blast nozzle size, blasting pressure, table rotation speed, and blasting cycle time.
• Fully Automated Cycle: Process sequences are controlled by PLC and interfaced with an intuitive HMI touch panel.
• Cartridge-Type Dust Collector: Delivered with a powerfull, self-cleaning cartridge dust collector able to capture up to 99.9% of particles down to 5 µm.
• Media Reclaiming System: Cyclonic separation of contaminated abrasive media for optimal performance – dust and by-products are diverted to the dust collector.
• Electricity: Available in all voltages and frequencies.
• Compliance: Design and door switches comply with OSHA requirements and most local safety jurisdictions.
• Parts Cleaning: Automatic blow-off cycle to remove all dust and contaminants from the freshly-blasted parts.
• Liner Protection: Rubber lining protection on the inner wall, rotating table, and media reclaimer for extended service life (Linatech).

Optional Features

• Tower Status Indicator Lights: Stack lights offer modular stackable components that provide illuminated and audible status indication for machines, systems and process.
• HEPA Filters: Our dust collectors are designed to fit a HEPA filter when the process requires it, which can capture 99.98% of particles down to 0.3 µm.
• Parts Handling Robots: Automate tedious and unsafe parts handling tasks with a dedicated robotic arm.
• Loading/Unloading System: Facilitate the loading/unloading procedure for heavy parts while preventing injuries in the workspace.
• Remote PLC I/O: Benefit from remote access assistance on the PLC, allowing for instant troubleshooting and easy software updates.
• MagnaValve Abrasive Regulator: The MagnaValve and controller provide an accurate regulation of ferrous and non-ferrous media in shot peening and blast cleaning applications where accurate and repeatable flow rates are desired.
• SWECO Vibratory Media Classification System: The SWECO particle separation and sifting system provides an accurate media classification and sizing for precise peening or blast cleaning applications.
