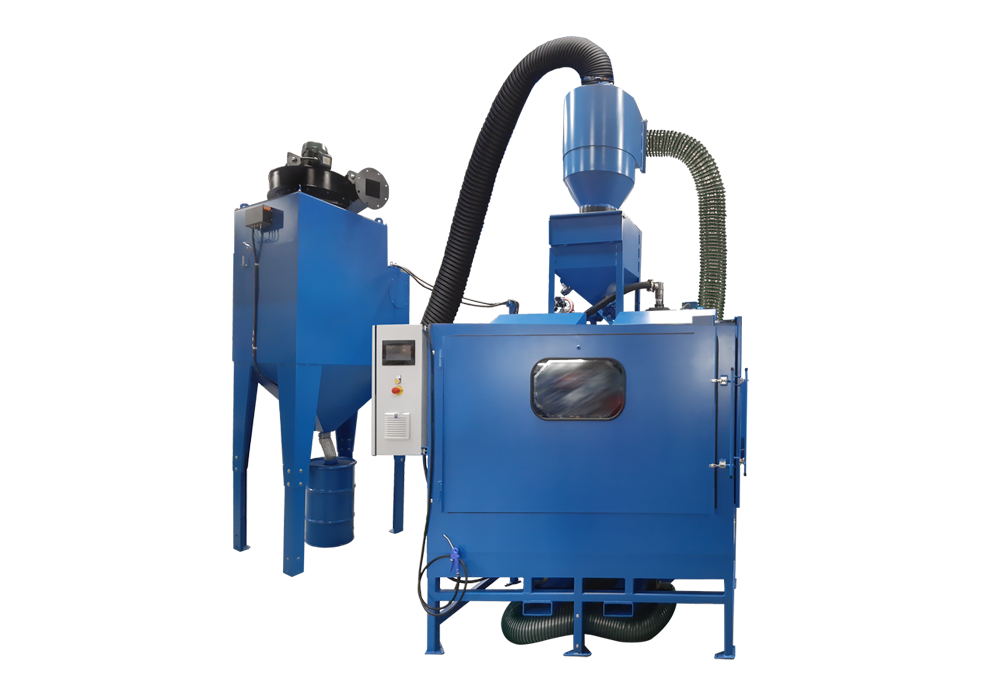

Rotary Table Blaster

Rotary Table Blasters are inexpensive sandblast systems designed to process a small batch of parts of various shapes and sizes. The key advantages of this system include its simple operating principle and its flexibility, since workpieces within a batch can differ in shape and size.

Download Brochure Request A Quote
Advantages of our Rotary Table Candblast Cabinet
  • Low initial cost.
  • Equipment has a small footprint.
  • Simple operating principle.
  • Can process several pieces at a time (batch cycle).
  • Fully automated and tuneable process.
  • Low-maintenance.
  • Easy-to-operate automated system, simply load the part and start the timer.
How It Works

Parts are loaded on a motorized turntable and exposed to the blast stream for a predetermined cycle time. Nozzles can be fixed on a support, a moving shaft, or mounted on a rotary head to provide optimal blast coverage all over the workpiece surface.

Nozzle Arrangements

The parts’ size and complexity usually define which nozzle arrangement is ideal for the application:

  • Fixed nozzles.
  • Oscillating nozzles on a vertical or horizontal axis.
  • Rotary head nozzles.
Cyclonic Separator

This sandblast cabinet is equipped with a tunable Cyclonic Abrasive Media Separator that continuously cleans and recycles the abrasive media during blasting operations. The separator removes dust, fines, and other contaminants by directing them to the Dust Collector, allowing only clean, reusable abrasive media in good working condition to return to the cabinet. This helps maintain consistent blasting performance, reduce media consumption, and improve overall process efficiency.

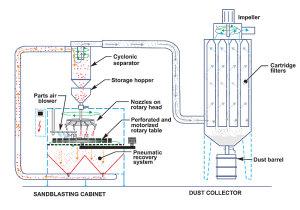

A cutaway diagram of an industrial cyclone dust collector shows airflow and particle paths; dust enters, spirals inside, larger particles fall to the bottom, while cleaner air exits through the top.

Learn More About The Cyclonic Separator

Dust Collection & Filtration System

All Automated Finishing Systems are delivered with a Self-Cleaning Cartridge Dust Collectors.

Two CDC Series industrial dust collectors with red and black metal bodies, control panels on the side, and a black cylindrical collection bin at the bottom, shown from a front and side view—ideal companions for sandblast cabinets.

Shop Cartridge Dust Collectors for Sandblast Cabinets

Key Features
  • Custom Design and Fabrication: Each system is tailored to the customer’s specifications to address all process constraints and for optimal results and productivity.
  • Personalized Process: Personalize your process by varying abrasive media, blast nozzle size, blasting pressure, table rotation speed, and blasting cycle time.
  • Fully Automated Cycle: Process sequences are controlled by PLC and interfaced with an intuitive HMI touch panel.
  • Cartridge-Type Dust Collector: Delivered with a powerfull, self-cleaning cartridge dust collector able to capture up to 99.9% of particles down to 5 µm.
  • Media Reclaiming System: Cyclonic separation of contaminated abrasive media for optimal performance – dust and by-products are diverted to the dust collector.
  • Electricity: Available in all voltages and frequencies.
  • Compliance: Design and door switches comply with OSHA requirements and most local safety jurisdictions.
  • Parts Cleaning: Automatic blow-off cycle to remove all dust and contaminants from the freshly-blasted parts.
  • Liner Protection: Rubber lining protection on the inner wall, rotating table, and media reclaimer for extended service life (Linatech).
Optional Features
  • Tower Status Indicator Lights: Stack lights offer modular stackable components that provide illuminated and audible status indication for machines, systems and process.
  • HEPA Filters: Our dust collectors are designed to fit a HEPA filter when the process requires it, which can capture 99.98% of particles down to 0.3 µm.
  • Parts Handling Robots: Automate tedious and unsafe parts handling tasks with a dedicated robotic arm.
  • Loading/Unloading System: Facilitate the loading/unloading procedure for heavy parts while preventing injuries in the workspace.
  • Remote PLC I/O: Benefit from remote access assistance on the PLC, allowing for instant troubleshooting and easy software updates.
  • MagnaValve Abrasive Regulator: The MagnaValve and controller provide an accurate regulation of ferrous and non-ferrous media in shot peening and blast cleaning applications where accurate and repeatable flow rates are desired.
  • SWECO Vibratory Media Classification System: The SWECO particle separation and sifting system provides an accurate media classification and sizing for precise peening or blast cleaning applications.
