Abrasive Media Recovery Systems for Blast Booths

What Is An Abrasive Media Recovery System?

An abrasive media recovery system is designed to collect spent abrasive media from the floor after blasting operations, transport it to a reclaim system, and separate reusable media from dust and contaminants. The cleaned media is then returned to the pressure blast pot for reuse, while dust and waste particles are directed to a dedicated dust collection system. The primary benefit of a media recovery system is a significant reduction in abrasive consumption, resulting in lower operating costs and improved environmental performance. Depending on the application and media type, recovery rates of over 95% can be achieved. Below is an overview of the key considerations when selecting the right media recovery system for your application.

Floor Recovery Hoppers Installation

After blasting, spent abrasive must be collected and transferred into recovery hoppers. These can be either recessed into the floor (in-ground installation) or installed above floor level (surface installation).

Above-Ground Vs In-Ground Floor Hoppers?

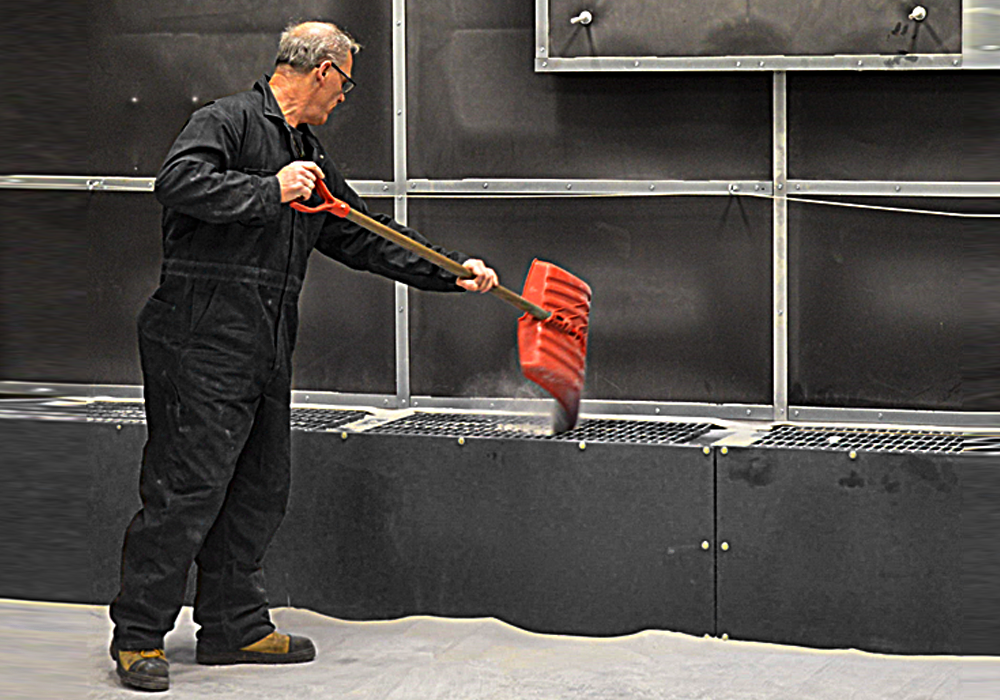

Above-ground systems do not require excavation and are therefore easier and less costly to install. However, they require more manual effort, as operators must shovel or push spent media into the hopper. In-ground (excavated) systems allow operators to sweep media directly into floor-level hoppers, significantly reducing manual handling and improving cleaning efficiency.

Above-Ground Installation	Excavated Floor Installation
No excavation required	Requires floor excavation
Lower initial installation cost	Higher installation cost
Higher manual handling effort	Faster and easier cleaning process

Above-Ground Installation	Excavated Floor Installation

Length Of Floor Recovery Pits

Recovery hopper systems can vary significantly in size, from compact 10-foot sections for small blasting rooms to over 200 feet in large-scale industrial facilities with high throughput requirements.

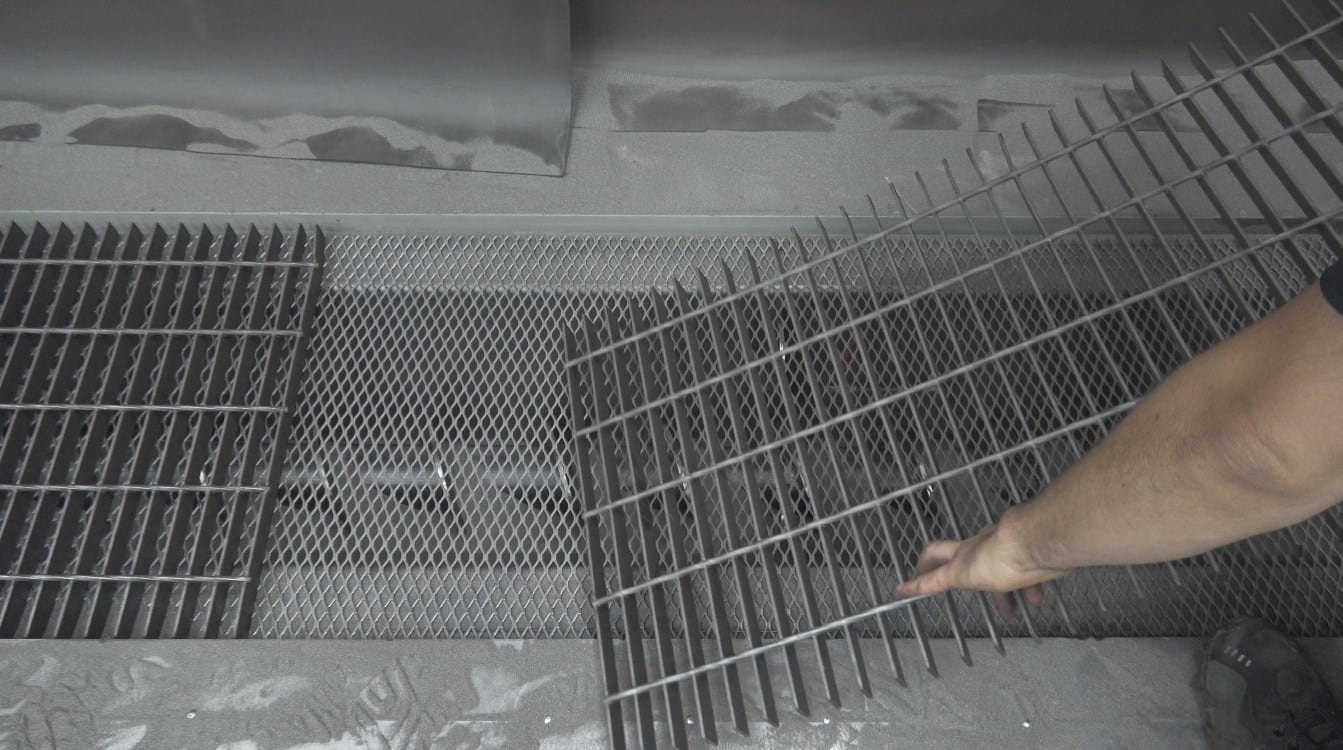

Removable Grating Protection

Floor hoppers are typically covered with heavy-duty removable steel grating rated up to 1,000 lbs per square foot. Higher load ratings are also available to support forklifts and other material handling equipment operating within the blast room.

Floor Hoppers Coverage

Full in-floor coverage systems (requiring excavation) provide continuous, automated recovery of abrasive media without the need for manual sweeping. Partial coverage systems, on the other hand, require operators to actively direct spent media into designated hopper areas. While full coverage systems offer the highest efficiency, they involve higher initial investment. Partial systems reduce upfront cost but increase manual labor requirements.

What Is The Ideal Floor System?

The optimal configuration depends on your application, abrasive type, production volume, available space, and budget. Below is a summary of common system types and their advantages and limitations.

Floor System Comparison Chart

INSTALLATION TYPES	ADVANTAGES	LIMITATIONS
EXCAVATED FLOOR INSTALLATION	Fast and efficient cleaning; minimal manual effort	Requires excavation work
ABOVE-GROUND INSTALLATION	No excavation required; lower initial cost	High manual labor; reduced efficiency

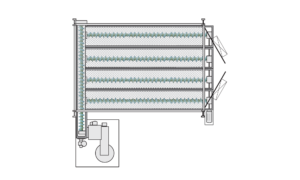

FULL FLOOR COVERAGE	Continuous automatic media recovery	Higher installation and maintenance cost

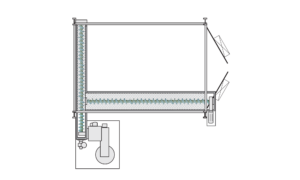

PARTIAL FLOOR COVERAGE	Lower cost than full coverage systems	Requires manual sweeping into hoppers
MECHANICAL LOADING (BOBCAT)	Low installation cost; no excavation required	Requires loader equipment and operator maintenance

Abrasive Media Recovery Systems

Once collected, abrasive media is transferred to a reclaim system where dust, broken media, and contaminants are removed. Only usable media is returned to the blast pot for reuse. Depending on the application, approximately 95% of the abrasive mix can typically be recovered. Kresco offers three standard types of abrasive media recovery systems:

System Type	Collection Method	Media Separation Method
Pneumatic	Urethane suction piping	Cyclonic separator
Mechanical	Screw conveyor & bucket elevator	Air wash separator / Rotary Sieve Separator
Hybrid	Screw conveyor + suction piping	Air wash separator / Rotary Sieve Separator

Pneumatic VS Mechanical VS Hybrid Systems

Selecting the right recovery system depends on several key factors:

• Budget & ROI: Mechanical systems require higher initial investment but often deliver better long-term operating efficiency and return on investment.
• Application type: Surface preparation vs. heavy-duty cleaning significantly impacts contaminant levels and system selection.
• Abrasive type: Heavy media such as steel grit or steel shot cannot be used with pneumatic systems.
• Available space: Pneumatic systems require less floor space and lower ceiling height than mechanical systems.
• Building constraints: Mechanical systems typically require at least 5 ft of excavation.
• Operational requirements: Recovery rate targets, cleaning frequency, and dust handling requirements (including combustible dust considerations).

System Comparison Overview

Here is a comparison chart of the main factors to be taken into account for making the right decision between a pneumatic, mechanical, or hybrid blast room recovery system.

Criteria	Pneumatic	Mechanical	Hybrid
Abrasive Type	Light to medium only (not suitable for heavy media such as Steel Grit)	All abrasive types	Light to medium (not suitable for heavy media such as Steel Grit)
Applications	Light-duty, low contamination	Heavy-duty, high throughput	Moderate to heavy-duty
Recovery Rate	Up to ~2,000 lb/hr	Up to ~10,000 lb/hr	Up to ~2,000 lb/hr
Installation	Minimal excavation, lower height (13 ft minimum)	Requires excavation, higher ceiling (18 ft minimum)	Minimal excavation, lower height (13 ft minimum)
Advantages	Low cost, flexible installation	High efficiency, low supervision	Flexible installation
Limitations	Cannot handle heavy media, higher supervision	Higher upfront cost, excavation required	Limited to lighter media
