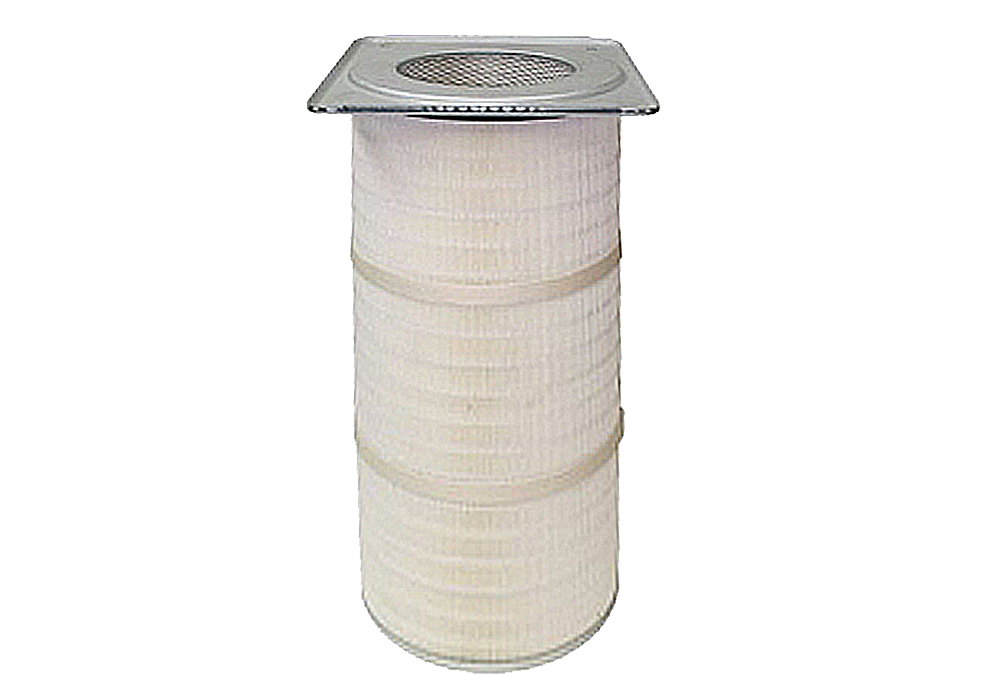

Filtration Capacity

Our cartridge media is able to capture 99.9% of particles down to 1 µm.

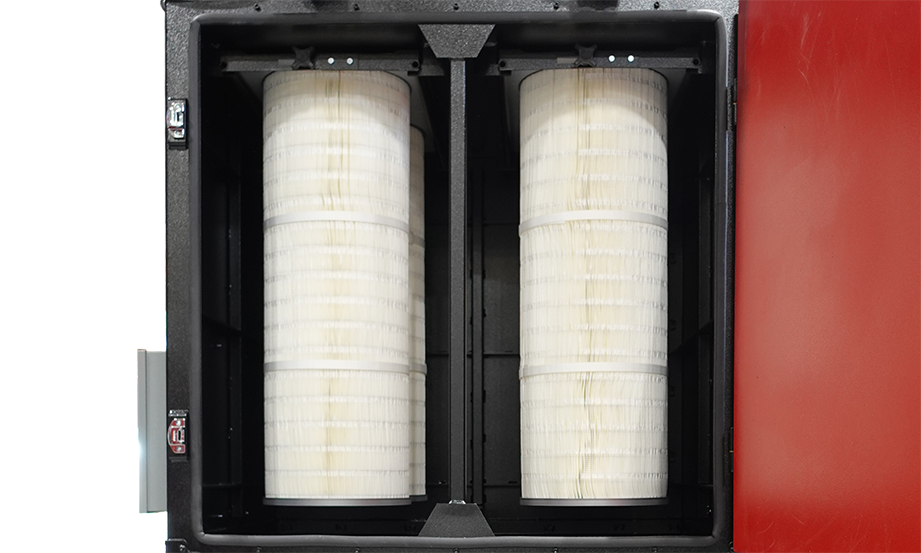

Vertical Installation of Cartridges

The vertical design of our dust collectors provides more efficient pulsing of dust, eliminating uneven dust loading associated with horizontally mounted cartridges. Vertical cartridge design achieves continuous 100% filtration rate.

Also, they require less attention and care since the vertical cartridges don’t require to be rotated to ensure uniform wear on all surfaces.

Automatic Reverse Pulse Cleaning System

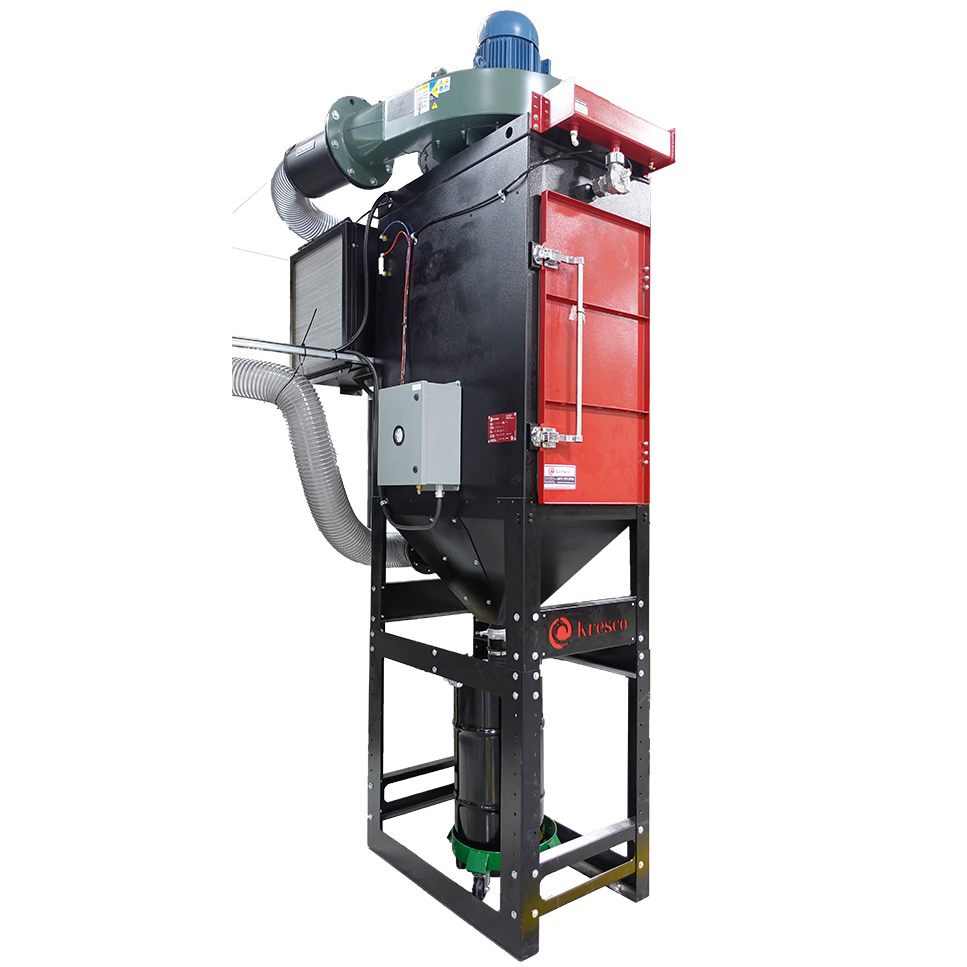

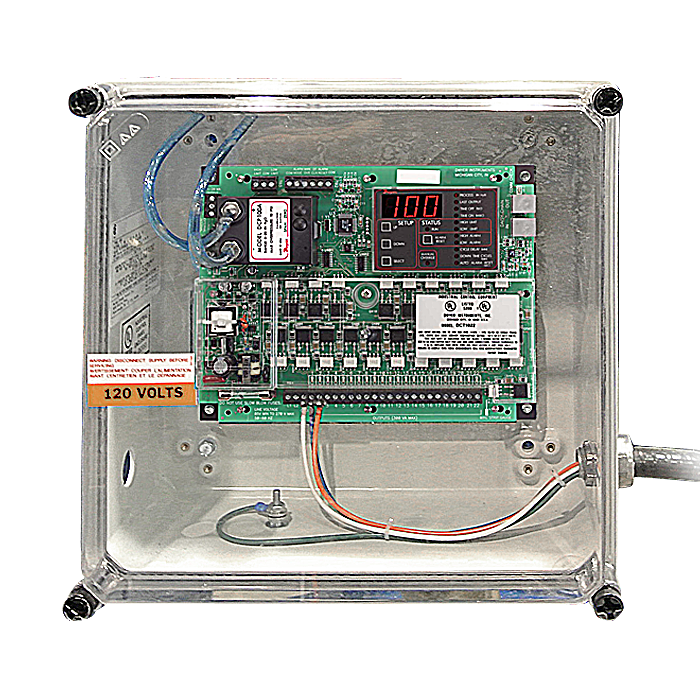

This PARS2000 dust collector features an automatic, programmable reverse pulse cleaning system for cartridges, and a digital pressure differential indicator to monitor the deterioration of the cartridge filtering efficiency.

Thanks to reverse-pulse jet-cleaning systems, this line of cartridge-type dust collectors guarantees a dust-free work environment, contributing to increased operator productivity while minimizing equipment wear and tear.

Maintenance of the Dust Collector

The CDC Series dust collectors include sealed mechanisms and easy-access doors, and require no tools for changing filter cartridges. Automatic self-agitating system removes dust agglomerated on cartridges without any intervention.

The cartridge replacement process is effortless and accessible by the front door. The operation and the cleaning process of the dust collector are fully automated and controlled by the sandblast booth PLC.

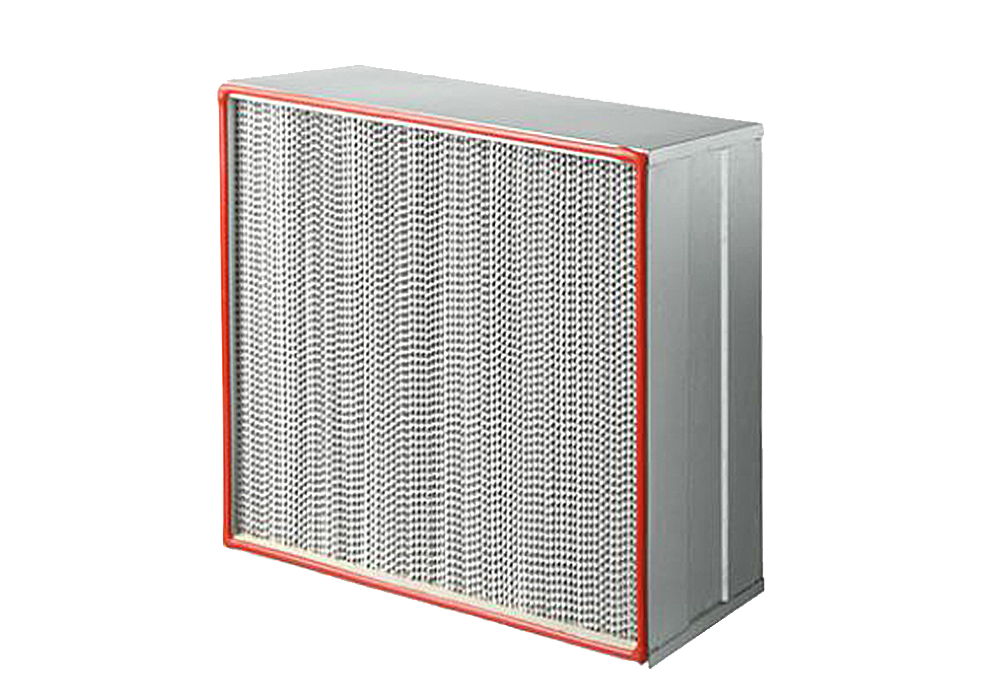

HEPA Filter

High-efficiency auxiliary filter capable of capturing 99.8% of particles down to 0.3 µm.

Dust-laden air enters the hopper section of the collector through a side inlet—either under vacuum or pressure—depending on the system configuration (bin vent models receive air from the bottom).

The contaminated air then passes through the cartridge filters, where particulate is captured on the surface.

Clean air flows into the plenum chamber and is either discharged to the atmosphere or recirculated into the facility, depending on the system configuration.
